The original motivation behind the WearComp
project [2] was an attempt to define a new genre of imaging
characterized by unprecedented control over lighting, and,
to create a tool that could allow reality
to be experienced with greater intensity and enjoyment
than might otherwise be the case.
This tool (Fig 1)

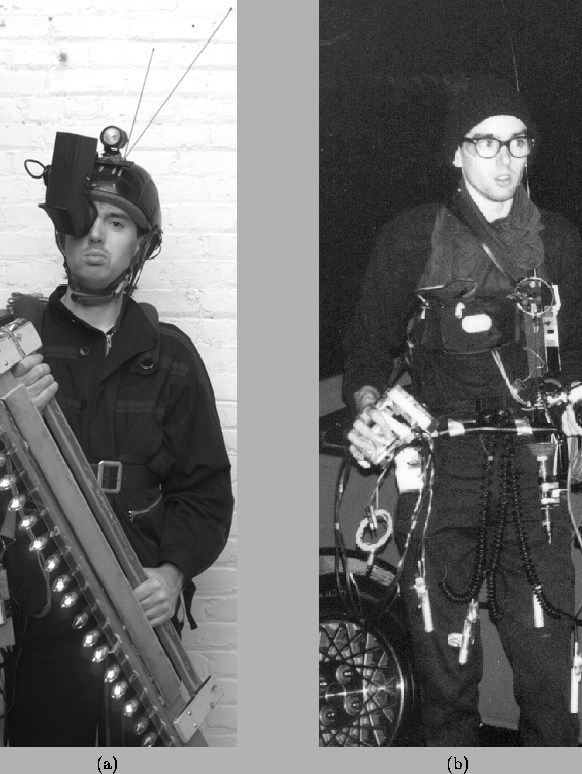

Figure 1:
Early embodiments of the author's original
``photographer's assistant'' application
of Personal Imaging. (a) 1970s ``lightpainting pushbroom''
system with 1980 CRT display. The linear array of lamps,
controlled by a body-worn processor (WearComp),
operated much like a dot-matrix printer to sweep out
spatial patterns of structured light.
(b) As this project evolved from the 1970s into the early 1980s, the
components were typically spread out on clothing rather than
located in a backpack. Separate 0.6 inch cathode ray tubes
attachable/detachable to/from ordinary
safetyglasses, as well as waist-worn television sets
were typically used instead of the earlier and more cumbersome
helmet-based screens of the 1970s.
Note also the change from the two antennas
in (a) to the single antenna in (b), which provided wireless
communication of video, voice, and data to a remote base station.
The use of black clothing (made of black velvet or black suede),
a black hood, etc.,
sometimes together with black makeup, was typical of the
optimum photographic function (turning the whole body into
an optimal camera/imaging system). Early on, the author's body
evolved this way in the same way that camera bodies are
typically black so as to minimize light scatter or reflection.
|
functioned much more like the sketch pad or the painter's canvas
to which Norman refers, than like the underlying
cameras that it embodied.
Fig 2
Figure:
Norman's criticism of the camera arises from the fact that,
in many ways, it diminishes our perception and enjoyment of
reality. However, a goal of
Personal Imaging [2],
through the apparatus depicted in
Fig 1,
is to create something much more like
the sketch pad or artist's canvas than
like the camera in its usual context.
The images produced as artifacts of Personal Imaging
are somewhere at the intersection of
painting, computer graphics, and photography.
(a)
Notice how the broom, dilapidated chair,
and flower pot (especially the
dead plant inside) appear to
be their own light sources (e.g. self-illuminated), and the
open doorway appears to contain a light source emanating from
within. The rich tonal range and details of the door itself,
although only visible at a grazing viewing angle, are
indicative of the affordances of the
lightspace/lightpainting [3] method.
(b) hallways offer a unique perspective, which can also be
illuminated expressively.
|
depicts two early 1980s attempts at creating expressive images using
the personal imaging system developed by the author in the 1970s
and early 1980s.
