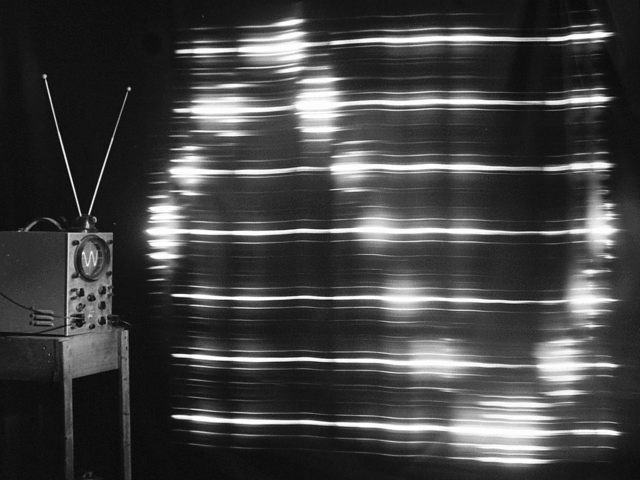

Sequential Wave Imprinting Machine, PHENOMENAugmented Reality Wand, Steve Mann, 1974

(still image, jpeg version)

S.W.I.M. is a wearable computer for shared augmented reality experiences that don't require the additional participants to wear any special apparatus.

"When I was 12 years old, back in the 1970s, I mounted an array of lights to a long wand that I could wave through the air in a darkened room while the lights were driven by a wearable amplifier and switching system I built. This allowed me to sense and receive various things and "display" them on the light stick, so that I could see sound waves, radio waves, and most interestingly, sense sensing itself (e.g. visualize vision from a surveillance camera). My invention later attracted the interest of MIT and later formed the basis of my portfolio in my successful application to MIT. I'm always happy to meet others who have built fun things in their childhood, outside the obligations of classes and labs. If you're like me in this regard, I'd love to hear from you." (link)


Instructable on how to build one: Measuring the speed of light, or speed of sound, etc., and, more imporantly, canceling its propagatory effect on radio waves or sound waves.

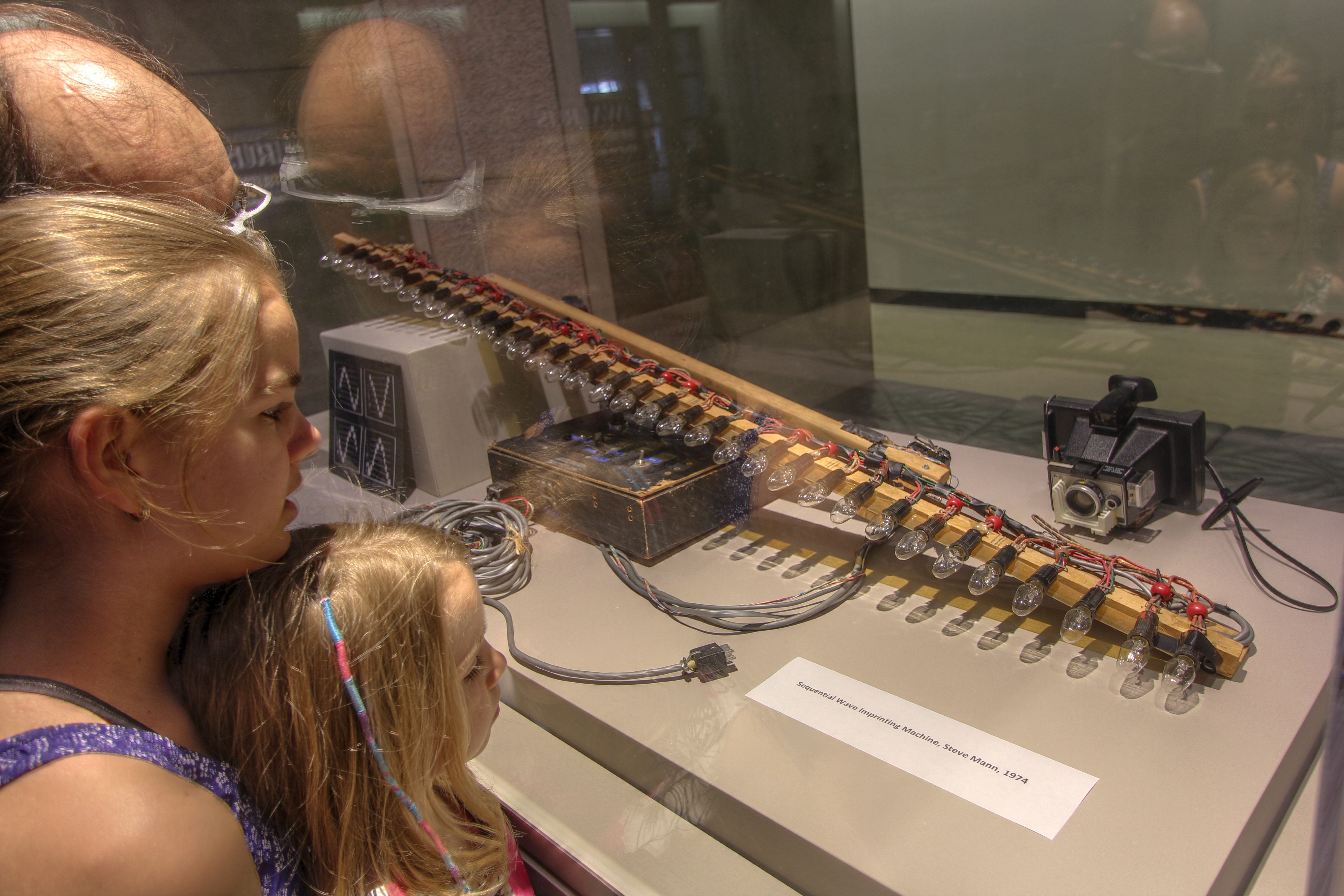

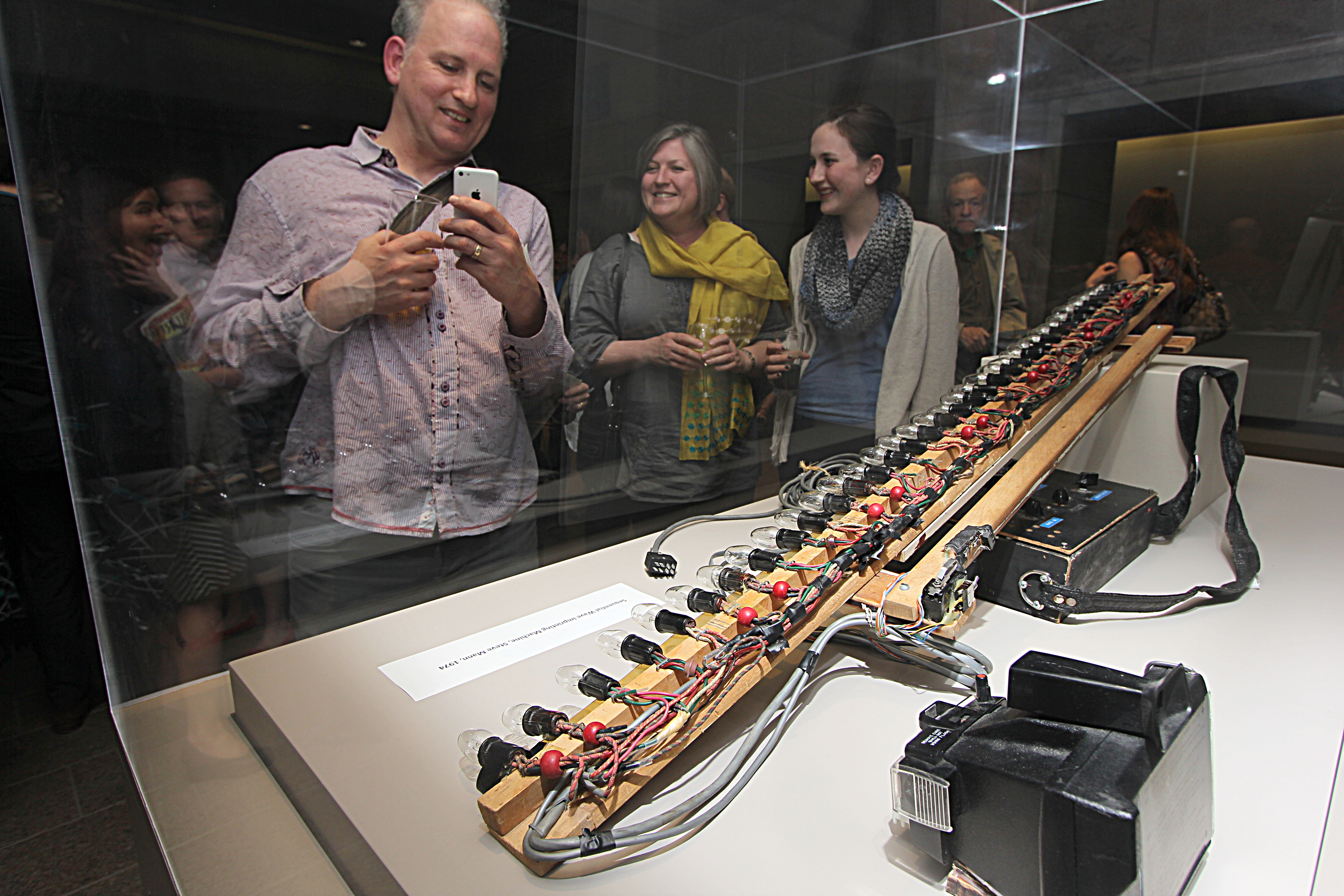

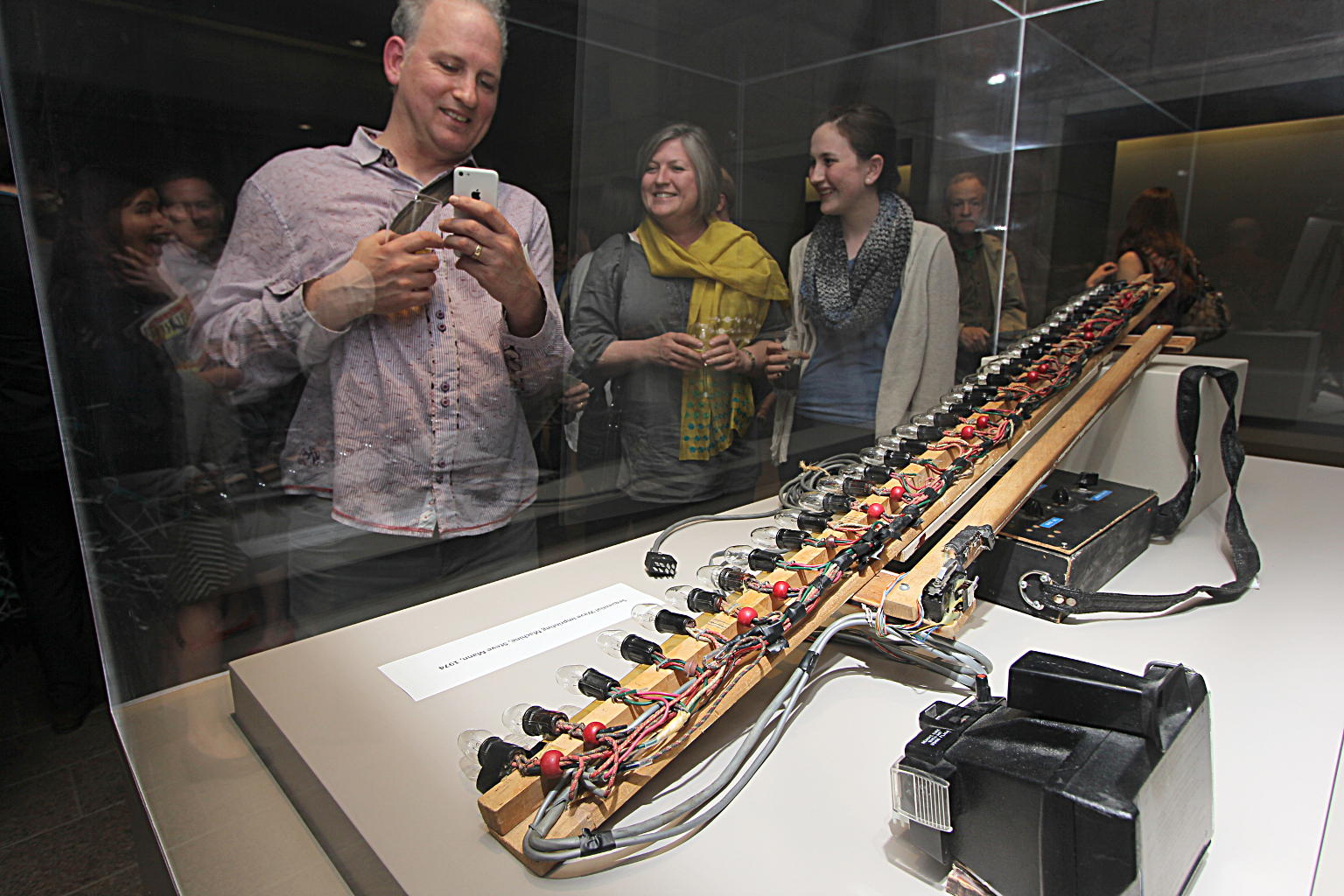

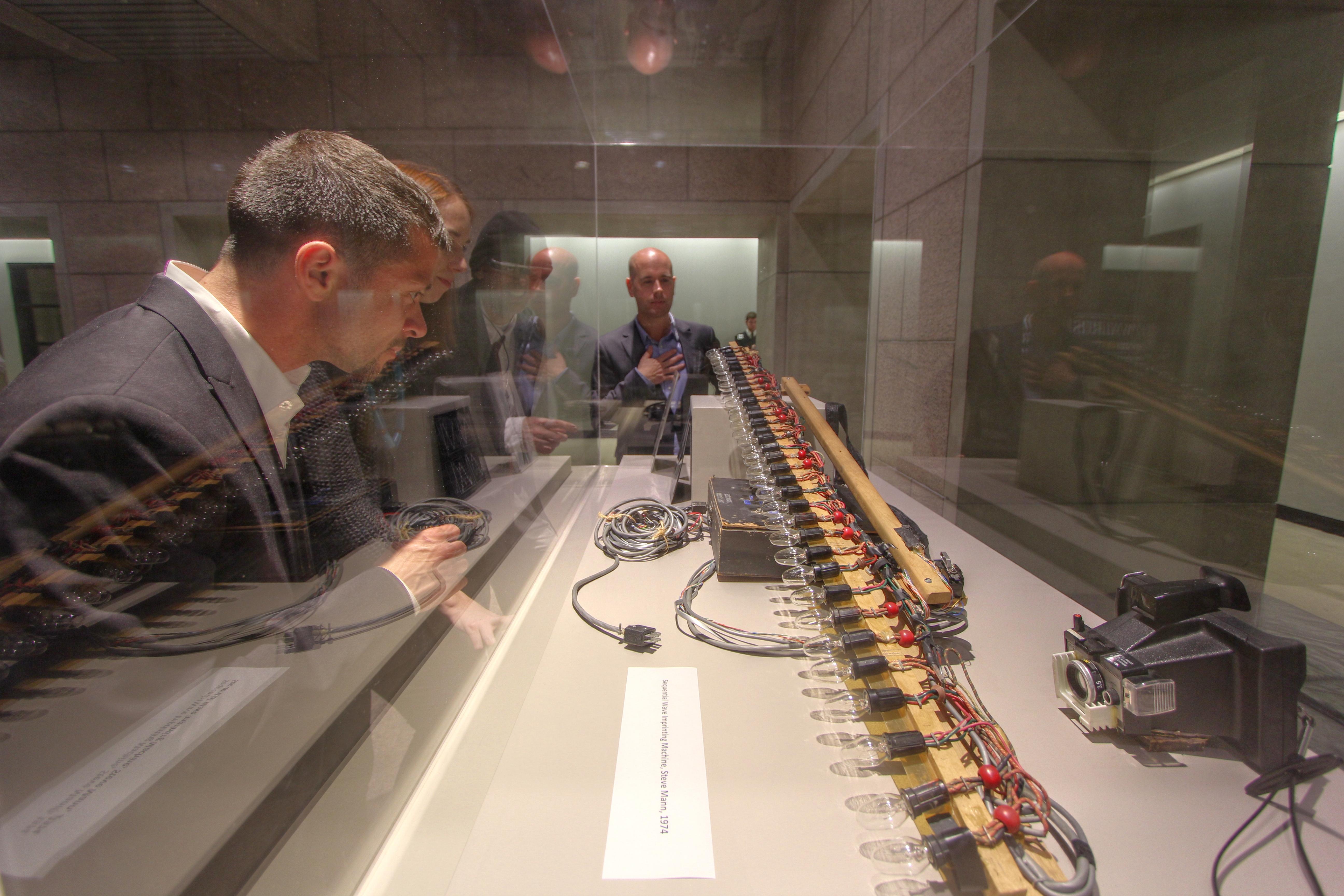

Steve Mann's Sequential Wave Imprinting Machine, 1974 (Augmented Reality with wearable computing more than 40 years ago) on display at the National Gallery, Ottawa:



Wearable Augmented Reality Computer, S. Mann, c.1974. Note neckstrap position for wearing the computer with the control panel upward, facing the wearer, worn like an "Usherette Tray" (the way people used to wear trays for selling cigarettes). The neck strap was later moved for wearing the apparatus flat against the body once the positions of the controls on the control panel were memorized.

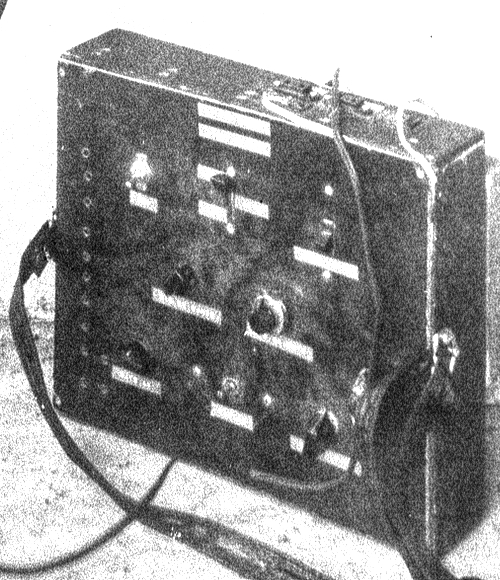

S.W.I.M. PHENOMENAmplifier in Campus Canada Fall 1986, in the lower left hand corner of picture. (Won First Prize, photo competion, prize plaque picture to right of the S.W.I.M. PHENOMENAmplifier.)

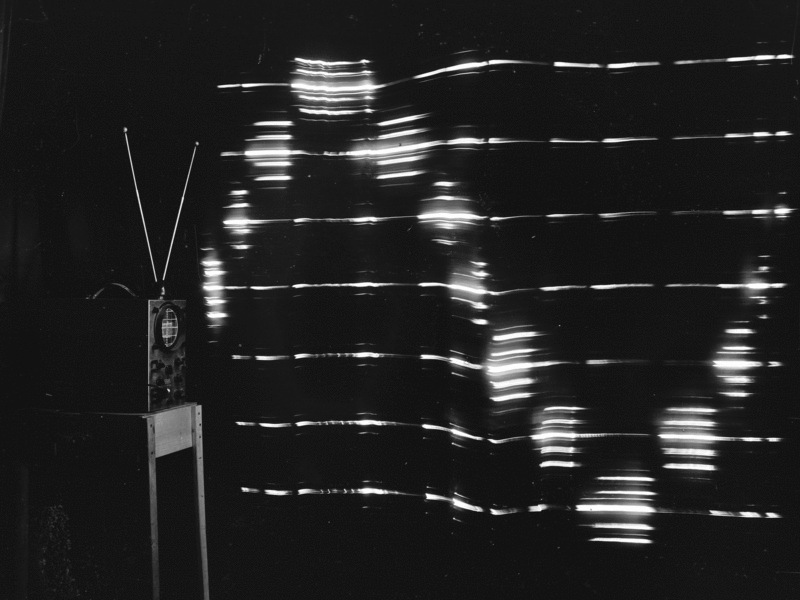

"Sequential Wave Imprinting Machine (SWIM) is an array of lights which is connected to a digitally addressed communications port. As the array is moved about, a small radar unit monitors its speed, and controls the rate of readout of the "swim buffer". Depending on the contents of the buffer, various waves and other shapes may be imprinted into the current image." [Mann, S. (1992). Wavelets and chirplets: Time-frequency perspectives, with applications. Singapore: World Scientific.]

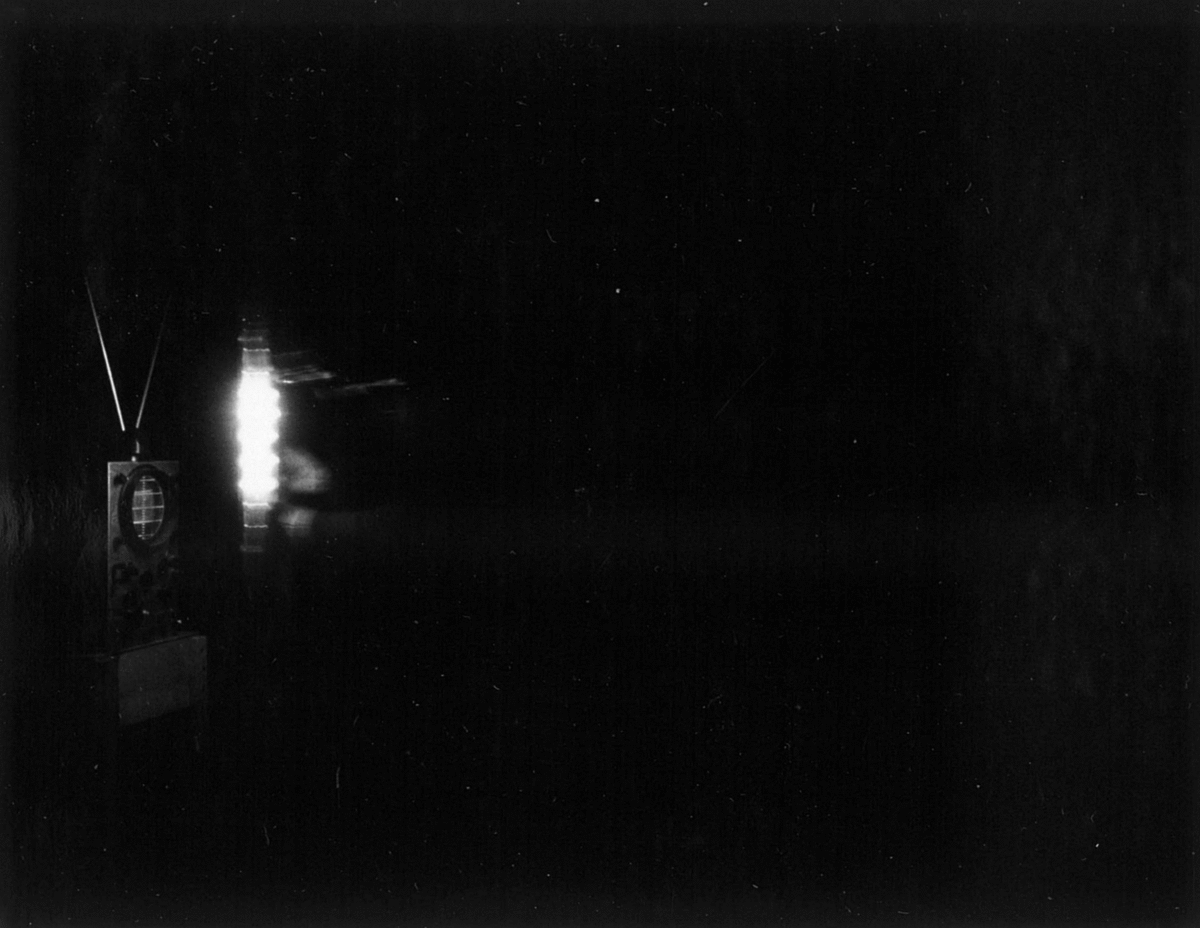

Early attempt, using diodes to create an "infill" effect, to fill in the area under the curve:

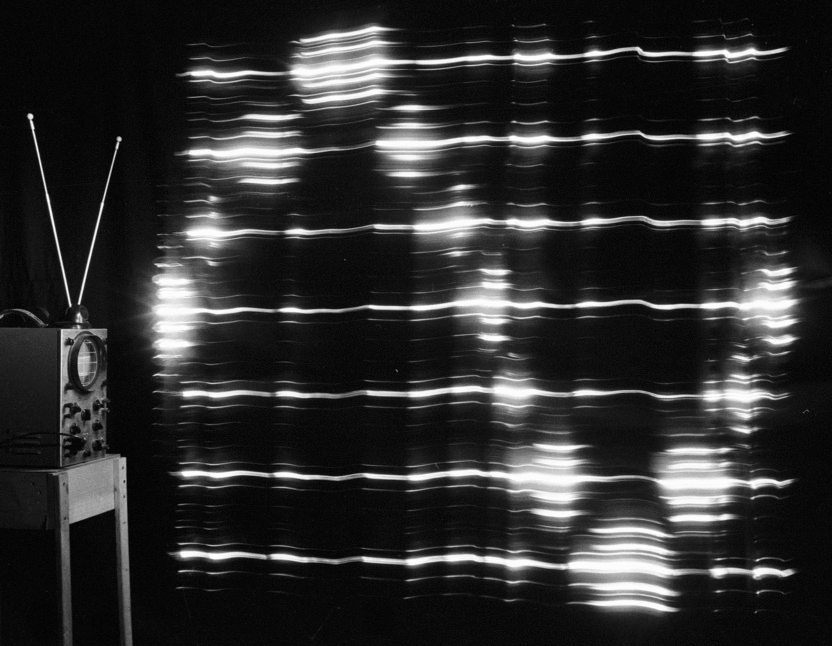

Sitting waves:

Steve Mann at #WalrusTalks, National Gallery, Ottawa 2015, with live demonstration of surveilluminescence (lamps that glow when they're being watched)

See also, Surveillance Study -- 36 Exposures:

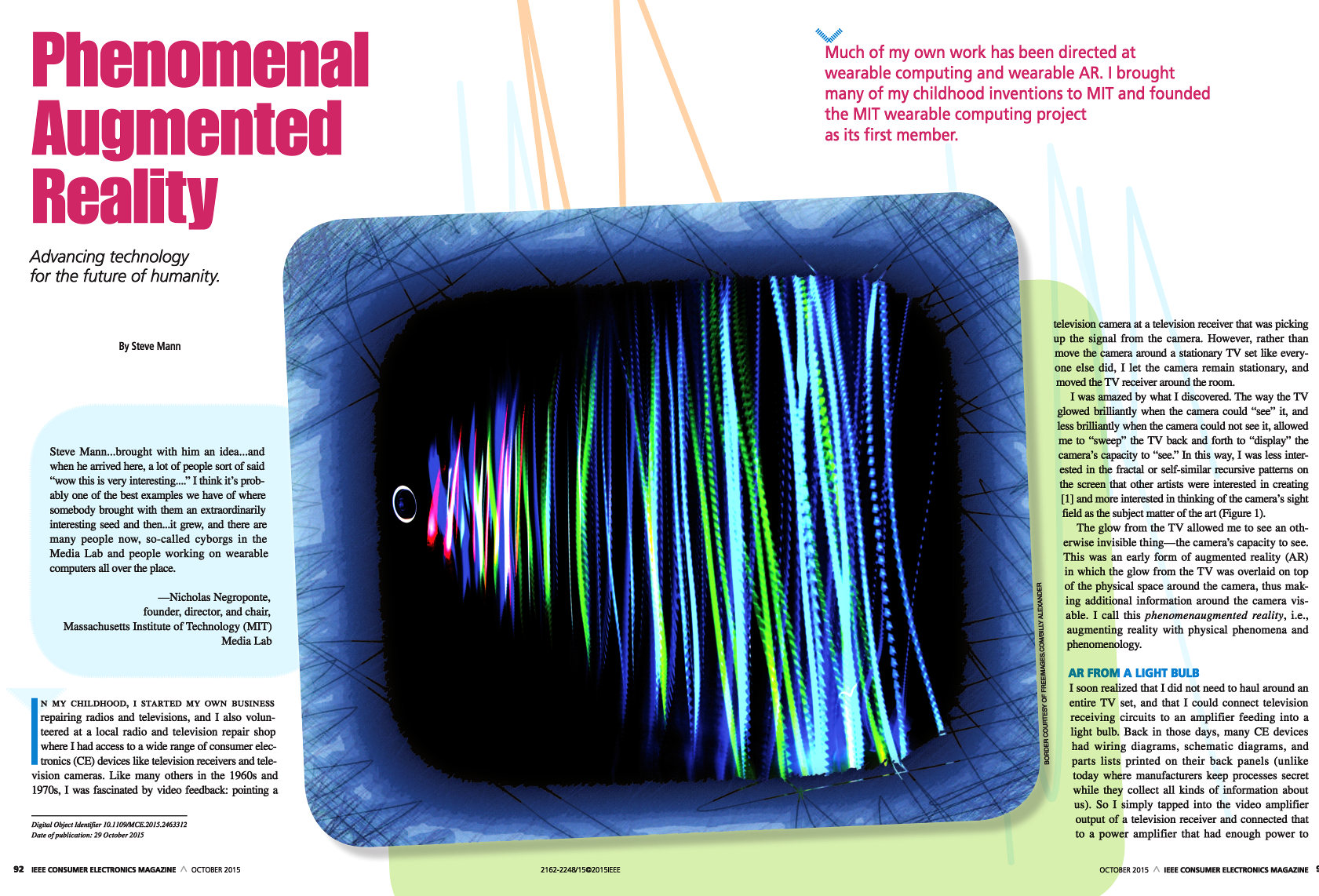

See also IEEE Consumer Electronics, Volume 4, Number 4, October 2015:

New S.W.I.M. using LEDs (Light Emitting Diodes), link.
