Final question of ECE431 final exam 2001

Thursday December 13, 2001, 9:30am

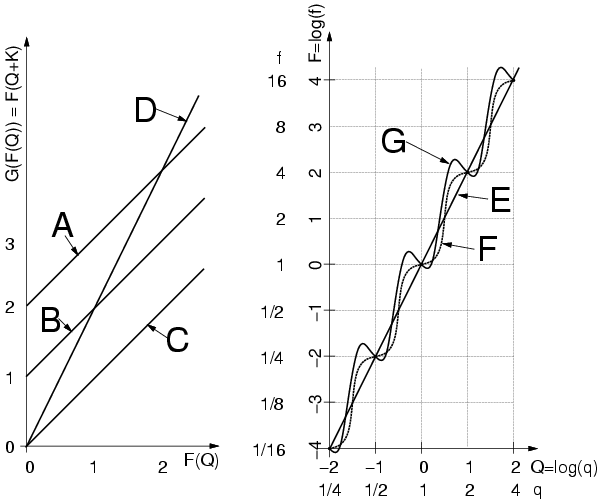

Q5b With reference to the figure below, which of the following comparametric plots at left correspond to possible candidate solutions shown at right. Identify which solutions correspond to which comparametric plots, if any, for any that are solutions. Explain your reasoning. Note that logarithms are base 2, and $K=log_2(2)=1$.

Answer: Response function plots E, F, and G, are all solutions to the comparametric equation corresponding to comparagraph A.
