Final exam: 3 hours duration

ECE385H1F 	WED 13 DEC 	PM 2-5 	MP125

A previous year's final exam:

See some examples of programming AVRs for STK 500 development board
See Examples for ATMEGA48


See (link provided by cs undergrad office=8-6360; grad+undergrad (all of) cs office=8.6025)
teaching schedule,
ECE385H1 F Microprocessor Syst L0101 N WF3   BA 1180
                        P0101           T3-6
                        P5101           M6-9 monday evening labs cancelled
                        P5201           W6-9
first day of CS classes september 11th, so first ece385 lecture september 13th

Grading scheme:

Lab grades are posted here

Labs 65%
Final exam 35%

Prof. Steve Mann
2006 teaching assistants:
Ryan Janzen; and Ali Tizghadam.

Lab0 simple parallel port interface

Study parallel port system architecture.

Specifically, in x86 architecture computers, understand the workings of the parallel port architecture, electrical connections, and programming to affect and access the parallel port.

You should be able to make your own device, for example, something with 8 LEDs that receives a byte input from the parallel port and displays this information.

This kind of interface can be used to control various appliances by way of being connected to the parallel port, and operated from simple scripts.

As an example of a totally new appliance built to connect to the parallel port, see, for example, SeatSale (License to Sit).

You can use SeatSale as some sample programs to access the parallel port, or you can also look up this information separately (there are many different sites that explain the parallel port)

Parallel port wiring diagram, pinout, etc., used in SeatSale; you can extrapolate this to the specific lab.

Lab 0 grading scheme

Lab 0 grading scheme

See also, some pictures, etc., from labs of years gone by (this year we won't be doing the ISA bus).

Lab 1

LED push broom


Lab 1

Lab1 grading scheme

Lecture on fonts

Here are the example programs you need; you should get these all running (you may need to modify for your kernel, .e.g. if you have a 2.6 series kernel, etc.) and show them in lab1, and then build upon this work, to demonstrate good programming practice

Example of parallel port device driver, "ibus"

Revised parallel port device driver

Useful references for parallel ports and device drivers:

Lab 2

Outline for Lab 2

Grading scheme for Lab 2

Excellent or best implementation(s) may be selected for the Hall of Fame, etc..

Review of AVR

Lab 3

Switches and LEDs (input and output on AVR).

Grading: 2 marks each (out of 10 marks total), in each of the 5 tasks:

Pushbroom Display of "HELLO WORLD  " (infinite loop) to LEDs

Keyer to AVR (reading data from a plurality of switches)

Arbitrary text pushbroom actuated by keyer

Design of program, cleverness, good program organization, etc..

Answer some random questions on your implementation, or on related material

Lab 4: Serial communication

There are 2 main aspects to lab4: In this lab, you will build a ``musikeyer'' (keyer with audio feedback) having 12 analog inputs.

To achieve this, you will connect two AVRs together serially, sending data from one to the other, and connect one of these two AVRs to an external device, sending data to that external device.

The external device produces audible feedback.

The external device can be any MIDI device, such as the keyboard in the Bahen 3175/3185 Department of Computer Science student computer cluster, on the table next to the communal printer.

You can get the general idea of a musikeyer from reading previous years' versions of this lab, although this year, it is simplified to emphasize serial communication.

Grading scheme:

Note that there is now a second MIDI keyboard available for use. This one is installed in the design centre, which is located in the Sandford Fleming Building basement

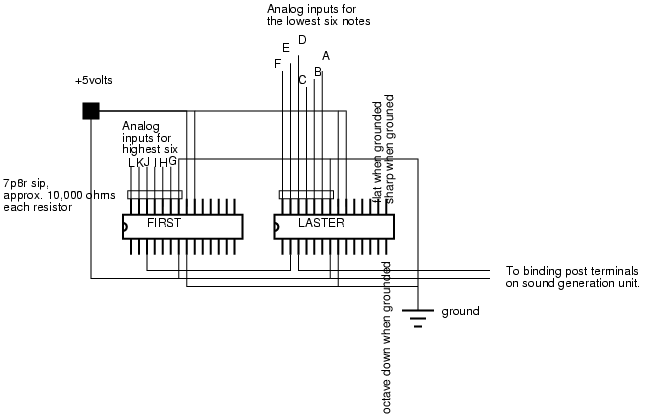

Wiring diagram for Lab 4:

(click for idraw PostScript)

Always put filter capacitors across power supply wires, as close to chips as possible!

I usually use 22 microfarad tantalum capacitors, but if you don't have that exact value or type, try something similar, e.g. perhaps a 10 microfarad tantalum capacitor, or a 10 microfarad electrolytic in parallel with a 0.1 microfarad disk capacitor.

Lab 5: UART to UART serial communication, Printed Circuit boards, etc.

Lab 5 is here

Lab 6: "Being Undigital" (Analog Processors)

Study the ISD2560 analog processor (Direct Analog Storage Technology) and implement pushbutton recording and playback.

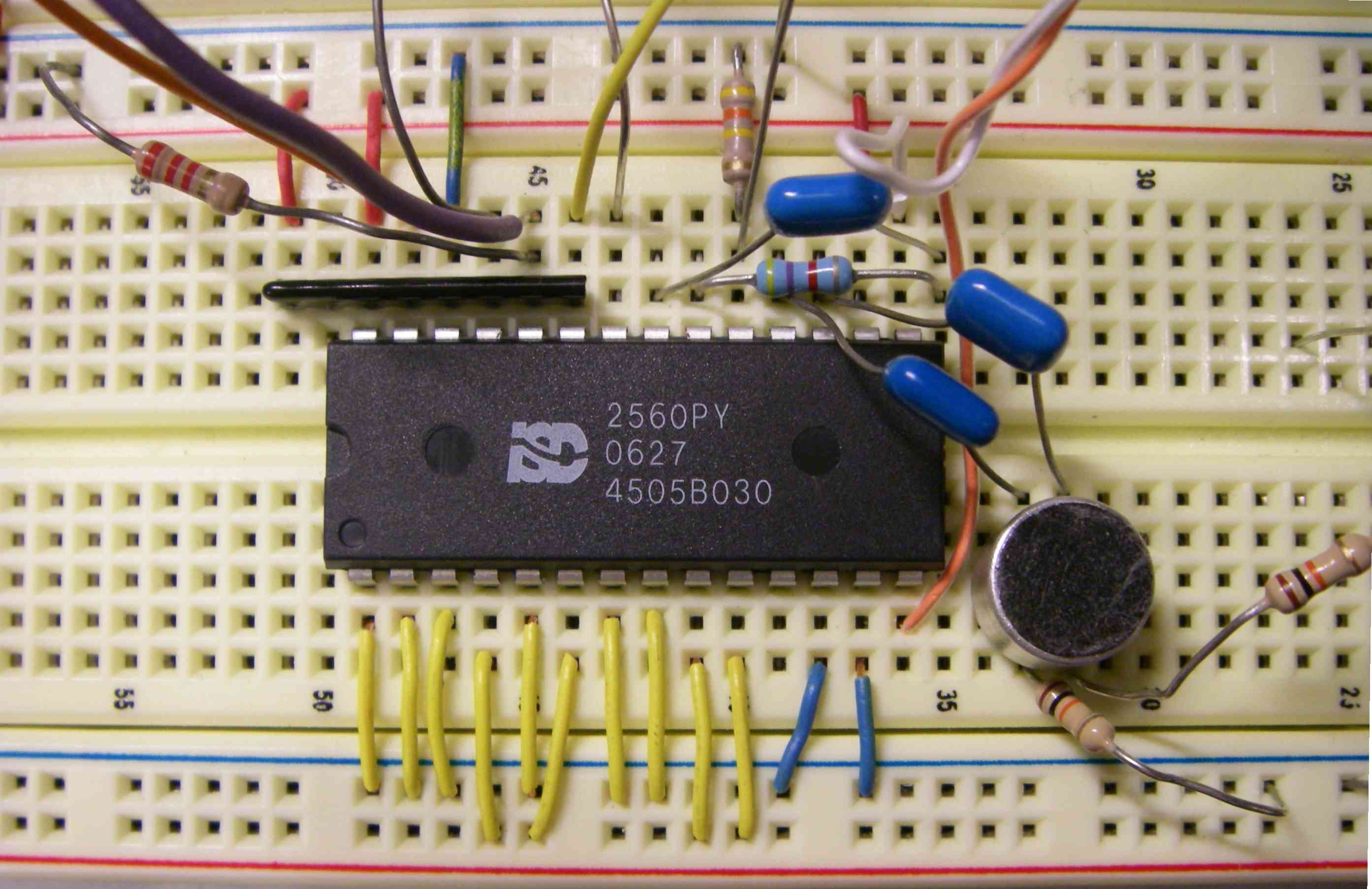

Here's wiring for the loopback mode:

Lab 7: hardware-based PWM

Lab 7 is here.

The remaining labs will be created based on the level at which students get to on present labs

The particular subject matter and degree of difficulty for lab 1 will be adjusted as per what the class achieves in lab 0; likewise lab 2 will be based on where we're at for lab 1, and so on...

Final project labs (the remaining 3 labs)

Final project labs:

Select a final project that demonstrates what you have learned so far.

For example, you can continue working on Lab 7 as an extension of Lab 5, adding to it, and taking it further, to combine Lab 5 and Lab 7 into an extension of this work, or to embody either Lab 5 or Lab 7 in further work, some blend thereof, or you can work on any one of the other labs and suggest how you would build upon it, or you can propose a project of your own.

Your final project should be agreed upon, to ensure that it is both sufficient, yet realistically attainable in the time remaining.

As mentioned in class last day, we will review what each lab group has proposed to work on, on Friday.

This final project will take up the remaining 3 lab periods, but you need to demonstrate and be graded on some portion of it each week during these 3 lab weeks.

Therefore, this upcoming lab, you will be graded on what you have done on the project thus far. Each of the three remaining grading sessions has equal weight, and each of these three remaining grading sessions has the same weight as any other lab. That means that the final project as a whole has three times the amount of weight, in total, as one of the other labs.

Other suggestions we've come to mutually understand: Simon implementation that uses 12 LEDs and a MIDI keyboard (input and output). This requires programming an AVR to "listen" to MIDI.

Resources for final projects: There are many resources you can fine. For example, look at some websites of other 3rd year CS courses, such as this one which is a lab in a third year CS course on creating a MIDI data receiving system on AVR.

See also, MIDI Communication and Geek Page Rolling Your Own MIDI Sensors, as well as Ryan's opto coupler MIDI interface.

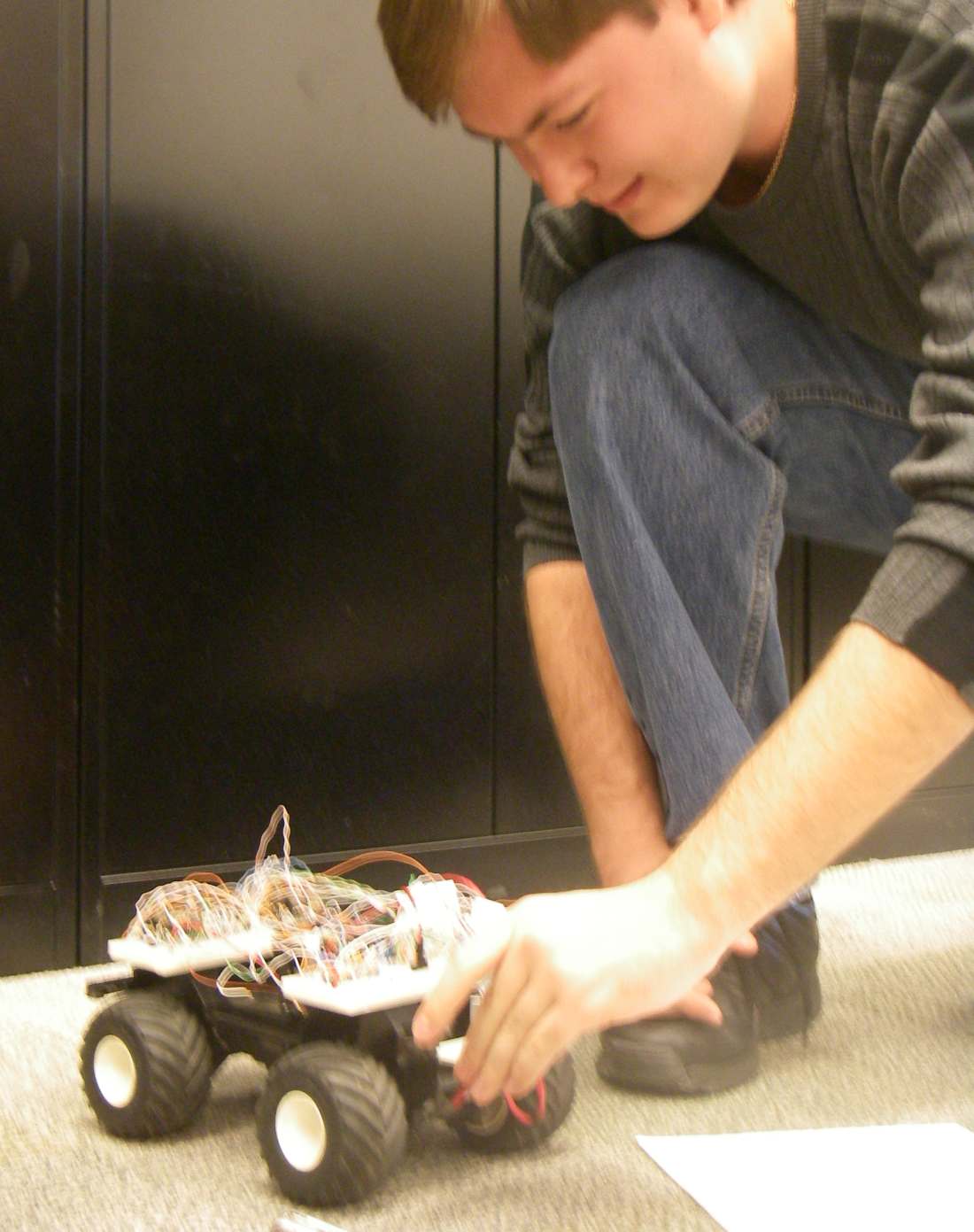

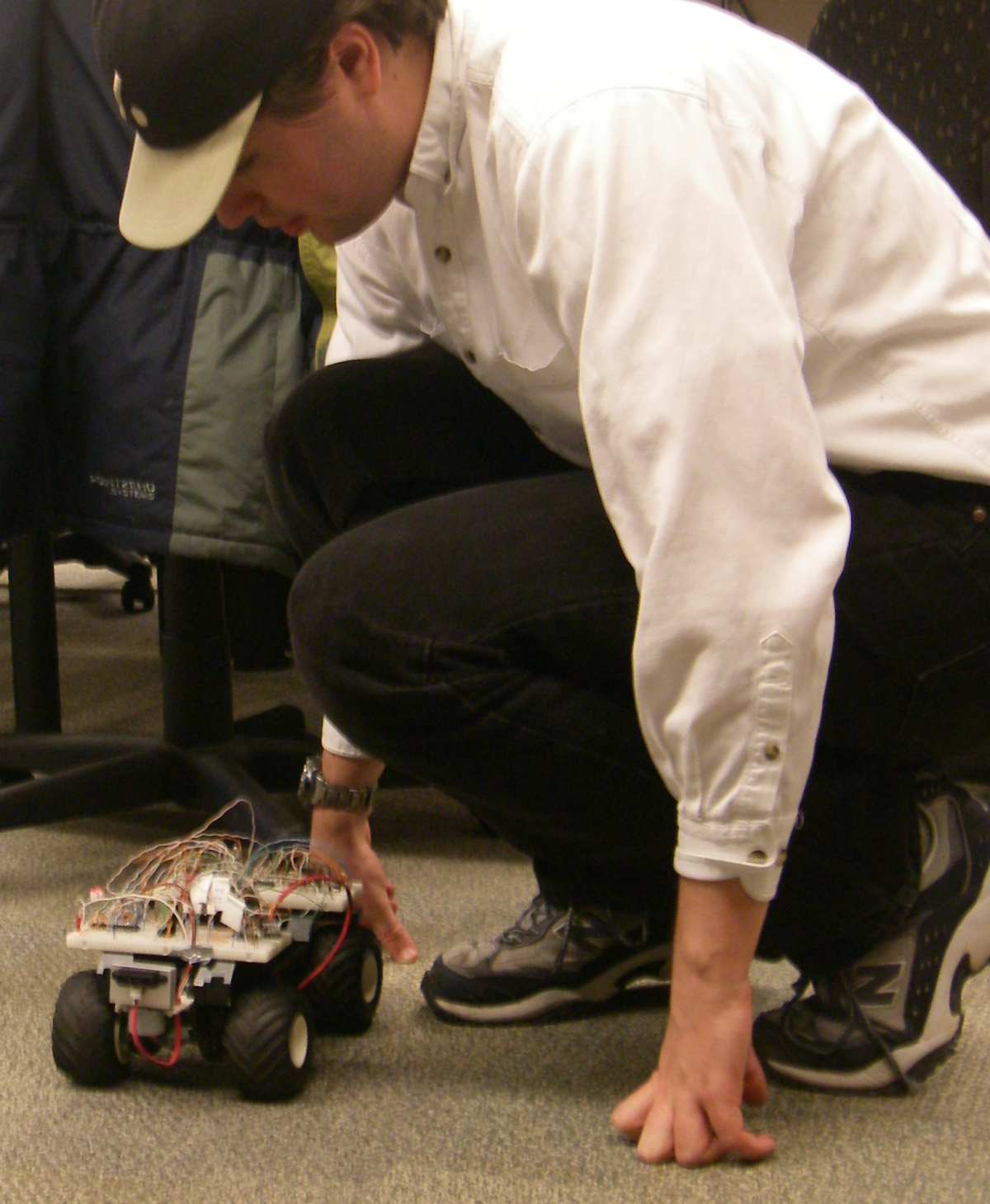

Martin and Roman's autonomous land vehicle:

Two other groups who decided to work on the Simon project:

For other ideas, see also last year's labs www site,

labs form groups of 2 people per group.

course textbook:

traditionally textbooks are made from dead trees. in this course, the textbook has a real microprocessor in it, and the pages of the textbook are swapped in and out of memory to a hard disk also contained in the textbook.

various editions of such a textbook are available at low cost since a fast textbook is not required (e.g. 100mhz 486 or 200mhz pentium, or so will suffice, as long as it has the right architecture, i/o ports, etc., e.g. it must have a parallel port), unless you want to be really creative with USB.

any recent edition of the text will be fine, e.g. the 4th edition (486) or fifth edition (pentium), a computer that is cheap enough that students won't be afraid to hack around with it and learn a lot about microprocessors.

each student lab group of two persons will purchase their own computer as the course textbook.

prices tend to range from about $50 to $150 for a good computer in good working condition. although a computer in poor condition can be purchased in the $0 to $10 price range, it is suggested that a computer in good working order be purchased.

the computer must have a parallel port.

note that some small laptop computers lack a true parallel port, and also note that a usb parallel port is often not a true parallel port and will often lead to problems later on.

you can get a computer that has a parallel port at above all surplus or at active surplus (addresses and phone numbers are on last year's lab website in

we have negotiated a special deal with active surplus, for "professor steve mann's ece385 class". part of the learning experience is buying a cheap surplus used computer, and getting it to do things far faster and more efficiently than new computers costing ten times as much but crippled with poorly designed operating systems.

students will bring the computers to labs, so we are recommending a sleek and slender very small size computer. although storage space may be provided in the lab for these computers, in the past, most students take their textbooks home with them regularly, to work on the labs.

students will be expected to install an operating system (gnu linux debian distribution) on the microprocessor based computers. the first lab exercise will be the installation of a real operating system (gnu linux, not virus95, virus98, or virusNT), and demonstration of the ability to connect a device to the computer and operate the device.

the reason for a freesource operating system like debian gnu linux is that the course is built on the principles and philosophy of openscience.

material will be taught with an emphasis on contemporary theory and practice of microprocessors, and the "stuff that matters" (e.g. the "stuff that matters" to students, in the sense of getting a great job upon graduation or for getting into a great research position, grad school, or the like).

in particular, students will learn not just how microprocesors work, but also how to use them, and how to connect things to microprocessors in both hard and soft aspects (e.g. both how to connect up things and how to get the operating system to see these things by way of writing some simple device drivers).

by the end of the course students will not be afraid to open up a computer, build something, and connect the something to the computer, and then extend the operating system to make sense of that something, at both the device driver, as well as at the userspace levels.

You can also look at the following text document kernel-docs.txt which I copied form the Debian 2.1 Linux source tree (in the directory /usr/src/linux/Documentation). It lists a series of references related to kernel hacking, which you may find useful. However, you may also want to look at more recent kernel documentation, as the kernel is contstantly changing.

Additionally, there is a FREE textbook, (free as in free speech AND free beer):
Download this book for free, and feel free to read it, print it, modify it, and enjoy it.

See also, Linux Kernel Module Programming Guide Ori Pomerantz.

To see your grades you will need to install and learn how to use gnumeric (the gnumeric spreadsheet program) which you can use after installing gnumeric (e.g. "apt-get install gnumeric").

Survivability grade: this is out of 1. There is 1 mark in each lab which is assigned for keeping the lab neat and tidy, and returning it to its original state, without loss or damage to any elements of the lab space.

lecture presentation format

a number of students expressed a desire to have the material on the www, so i author lectures (beginning 1999) in html and present the lectures as html pages by plugging a videoprojector into my microprocessor based wristwatch videophone or eyetap, or wearable computer system, and projecting the video signal in class. in this way students will have had the opportunity to visit at least last year's versions of each of these web pages prior to class. (Note that this website is ongoing, so it constantly gets updated.)

printing of course lecture pages

You may want to remain within your printing limits. There is a limit to printing provided for students. These pages are in large type for being viewed in the lecture hall. Therefore you should use the "psnup" command, or a similar program to assemble multiple pages on one printed page, if you are printing out these pages. Also note that the pages may be obsolete by the time you print them, because this is a dynamic document that gets updated on an ongoing basis. Therefore, don't print pages ahead of where we are presently in the lectures during any given year.

www page for last year's labs

the www page for last year's labs is located at

most of the lecture material is available on this www page



lecture3: machine instructions

lecture4 pushbroom, lab info for next lab

a good example of lab1, from Mansoor Riaz and group, following well the recommendations from class, for font layout, etc.

from the hackers mailing list: building games: computer control of the lights in a building; Chaos Computer Club (CCC) event

lecture5 math c examples, differences in architecture, etc

Hall of fame 2002: Pouya Larjani, Lee Zamparo and Richard Yan and a good example of a pwm pushbroom for lab1. Other highlights of interest by other lab groups included printed circuit board ISA ribbon adapter, etc.. If you've got something to show, let us know...

ECE385 Lab1, 2003

lecture6 (getting ready for lab2)
ECE385 Lab2, 2003

lab2 (see also

lecture7: device drivers, virtual addr., paged memory

lecturedram: memory systems for microprocessors

lecturetiming: the sands of time, used in lab3

fonts: bdf (bitmap distribution format) and btf (bitmap teaching format), etc..

lecturesram: SRAM = static memory for microprocessors


lab6 new 82c54 pwm code for series 2.4 kernels

lecturelab6 (82c54 pwm)


lecturelab7 (interrupts)


lectureA = Pipelining1

lectureB = Pipelining2



Hall of fame 2001

Pictures from of lab 5 (actually taken during lab6) last year:

You can also connect LEDs to your serial port; if you want to try this, let me know and I'll bring in my Pro-Lite PL-M2014R LED sign for you to experiment with (see also some script files for the sign, including the first quiz).

Hall of fame; Something cool from this year: lab 5 keyers

announcement: if you like this course, you might want to consider contributing to the improvement of the course materials, upgrading the labs, or perhaps working in the humanistic intelligence lab. if joining the personal cybernetics team is of interest, please contact me right after any of the lectures.

also, i also have a number of 4th year computer science thesis (cs495, cs494) projects available that could serve as a continuation of the "stuff that matters" learned in the course.

lecturelab9 (final projects)



other notes, and matters of interest...
gnux process scheduling

other notes, and matters of interest...
If science is the art of reverse engineering nature, e.g. unlocking the secrets of nature, or God, then perhaps computer science is the art of reverse engineering computers, e.g. unlocking the secrets of manufactuers. See for example

Open source telnet client for use with virus32:
someone sent me email at cs which doesn't get forwarded to me... note that i don't have a computer account on cs (mann@cs is my brother's account, from when he was a student at toronto, and he's now a professor at u. waterloo). so if you're sending me email, it needs to go to (my current email address is listed on the www page at

ece385 lab9 hall of fame (cool lab9 projects)

summer projects: if interested in working on last year's "altera internet device" (with funding from xylinx it will be the "anything internet device"), please let us know. this is a device currently being used to connect anything from your wristwatch to your eyeglasses to your building (faucets, lightswitches, etc.) to the internet. for more information, see
