A new design for a mass decontamination facility: Efficient ways of processing large numbers of people

In the event that persons are suspected of having come into contact with biological agents, such as anthrax, it may be necessary to evacuate thousands of persons to a cleansing station or decontamination facility.

The need to corral masses of panic-stricken individuals to a decon facility is not just to herd large numbers of persons to the facility, but also to ensure high efficiency and high throughput.

Without pipelining, it typically takes each victim 30 seconds to strip, 30 seconds to wash, and 30 seconds to cover = 90 seconds total = 40 persons/hour throughput.

This assumes the three steps:

  1. strip (deconfiscate decontraband);
  2. wash (shower); and
  3. cover (after examination from a safe distance, by way of a telemedicine video link),
each take place in the same section of the facility.

However, by having stages, and herding persons through a decontamination line, with pipelining, it is possible then to process persons at a rate of 30 seconds/person = 120 persons/hour throughput. Even though it still takes 90 seconds to process each person, in steady state conditions, persons enter the decon line every 30 seconds, and persons emerge every 30 seconds.

With parallelism in addition to pipelining, a further increase can be obtained. Suppose, for example, that each stage of the pipeline can accomodate six persons at a time (e.g. a six station stripdown room, six station shower, and six station examination/drying/dressing room).

If privacy were not a problem, the throughput could be increased to 720persons/hour.

However, when six persons enter the stripdown room, shower room, and drying room, together, there is a privacy problem. This problem was solved by having separate decon pipelines for men and women, so that the facility could process 720men/hour and 720women/hour. In addition to solving the privacy problem, having these two separate pipelines resulted in additional parallelism: 720men/hour+720women/hour=1440 persons/hour.

The final design is depicted below:

where 1W, 2W, and 3W denote the three stages (1, strip; 2, wash; and 3, cover, respectively) of the Women's pipeline, and likewise 1M, 2M, and 3M for the Men's pipeline.

A feature of this space-efficient hexagonal packing is that people never need to turn at angles tighter than 120 degrees, so throughput is very high. Also, the 120 degree angles where walls meet facilitates the installation of high security rotogate turnstiles like those used in unguarded automated subway exits. This ensures that no person can flee from the facility without passing through in the proper direction. Moreover, the hexagonal packing of the six rooms creates lost space in the center. This lost space is actually put to good use as a central triage observation room. The walls of this central room are made entirely of smoked lexan so that guards in the room can have a clear view of activities taking place in the six rooms around the outside, but, for reasons of national security, persons in the six rooms cannot see into the central guard tower. This central triage/observation room also houses computers and video cameras to buffer the video for archival, for quality control and training purposes, and to ensure that safety policy and procedures are complied with.

A mass decon facility, incorporating features of this design, was designed, built, and tested at 80 Spadina Avenue, in Toronto, over the summer of 2001. Final test results in the context of a series of anthrax-free mailroom field trials were completed in July and August 2001.

Central triage/observation room

A key feature of this facility is the hexagonal rooms. A hexagonal countertop was first built for the central room. The countertop was too big to move into the central triage/observation room, so was built first so the triage/observation room could be built around it:

Next, a support structure is provided for the countertop:

The hexagonal countertop is then moved into position so that walls made of darkly tinted bulletproof glass, or darkly smoked lexan (polycarbonate) can be built around it:

The countertop will later be used by decon/triage officers for setting down their notepads or portable computers. Six high resolution video cameras are also installed on the countertop, in case the decon/triage offiers are at a remote location, or to record video for evidence as victims later move through the decon lines:

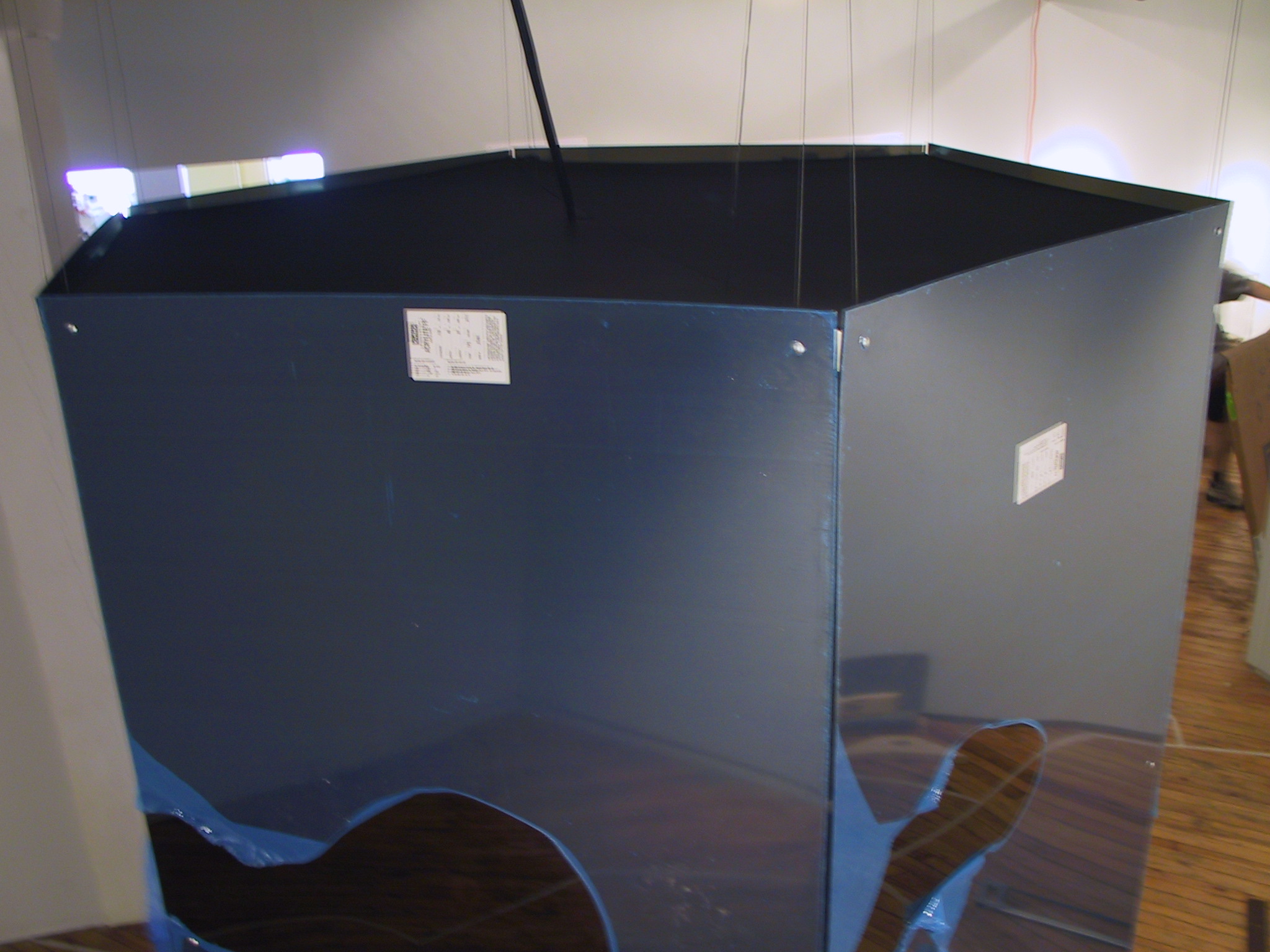

Six walls made of smoked polycarbonate are then built around the countertop with the cameras and computer equipment inside:

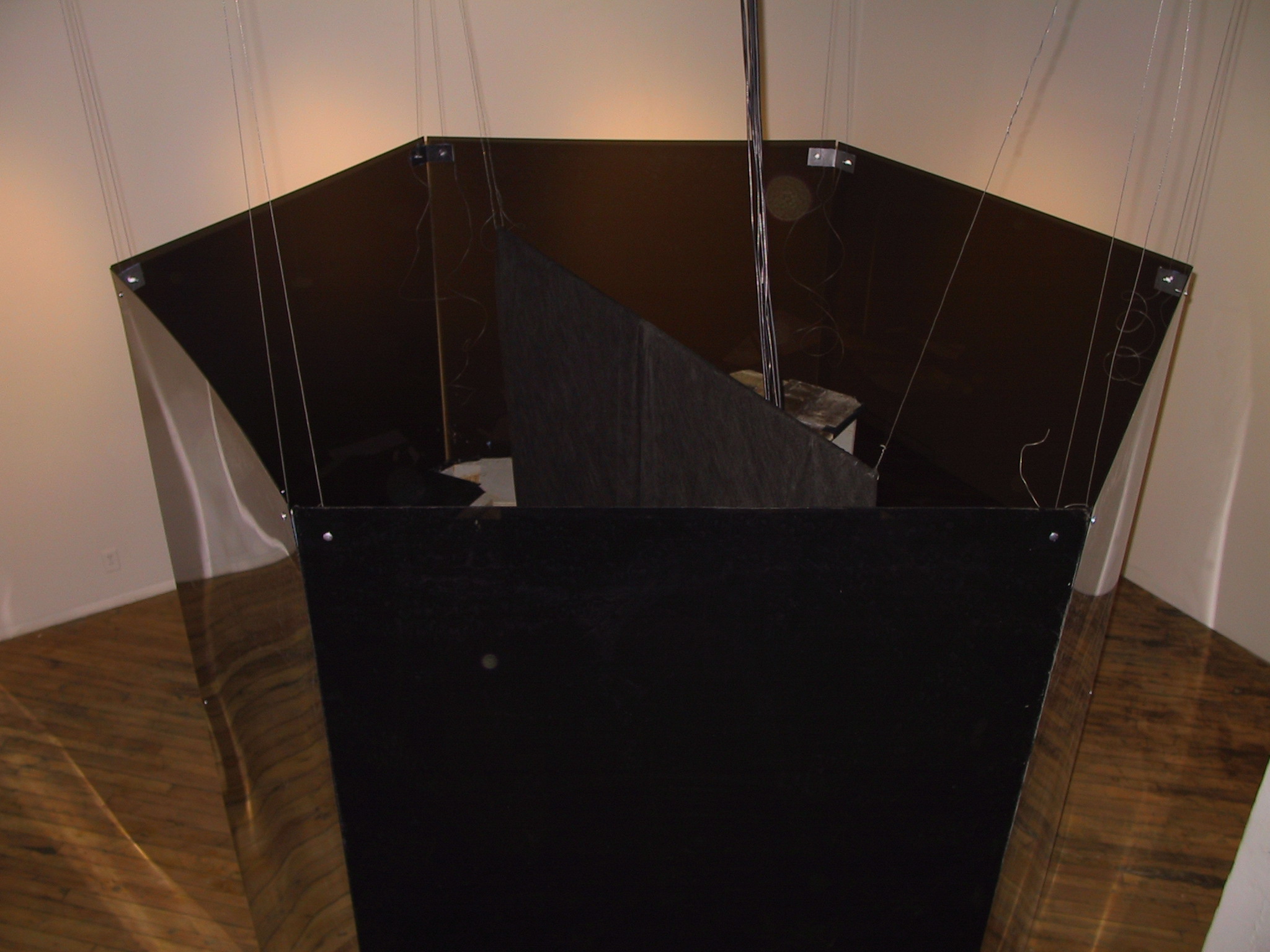

To ensure complete total absolute privacy, a black cloth sheet hangs down the center of the triage observation room, so that men cannot look into the smoked lexan and see through to the women's side, or vice versa:

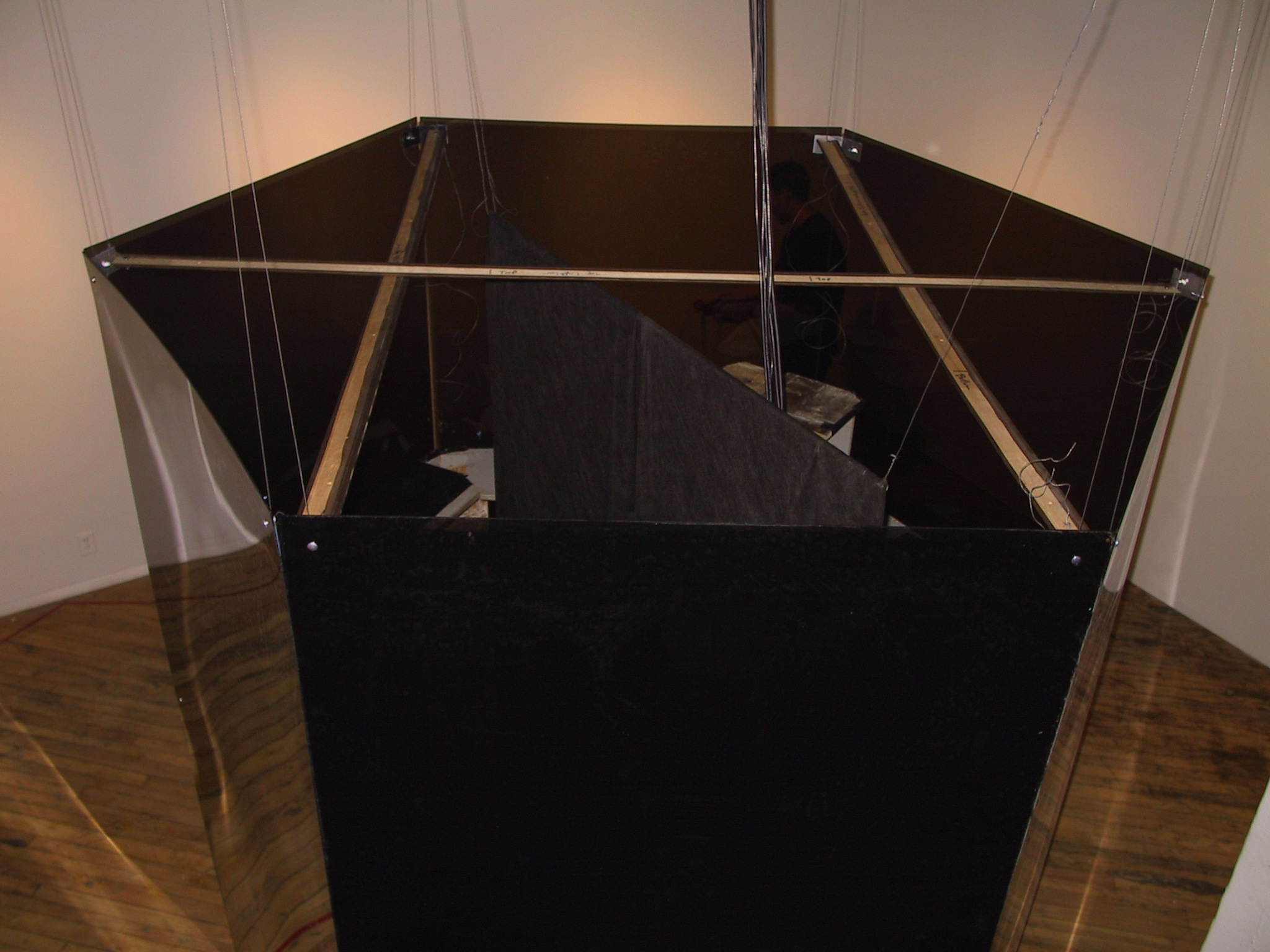

Support beams are placed across the top to provide additional structural integrity:

A black opaque hexagonal cover fits on top of the triage/observation room (resting on the support beams), to ensure that it is dark inside the observation room. The darkness in this room makes it easy to see out into the six surrounding rooms, but hard for people in the six rooms to see into the central triage/observation room:

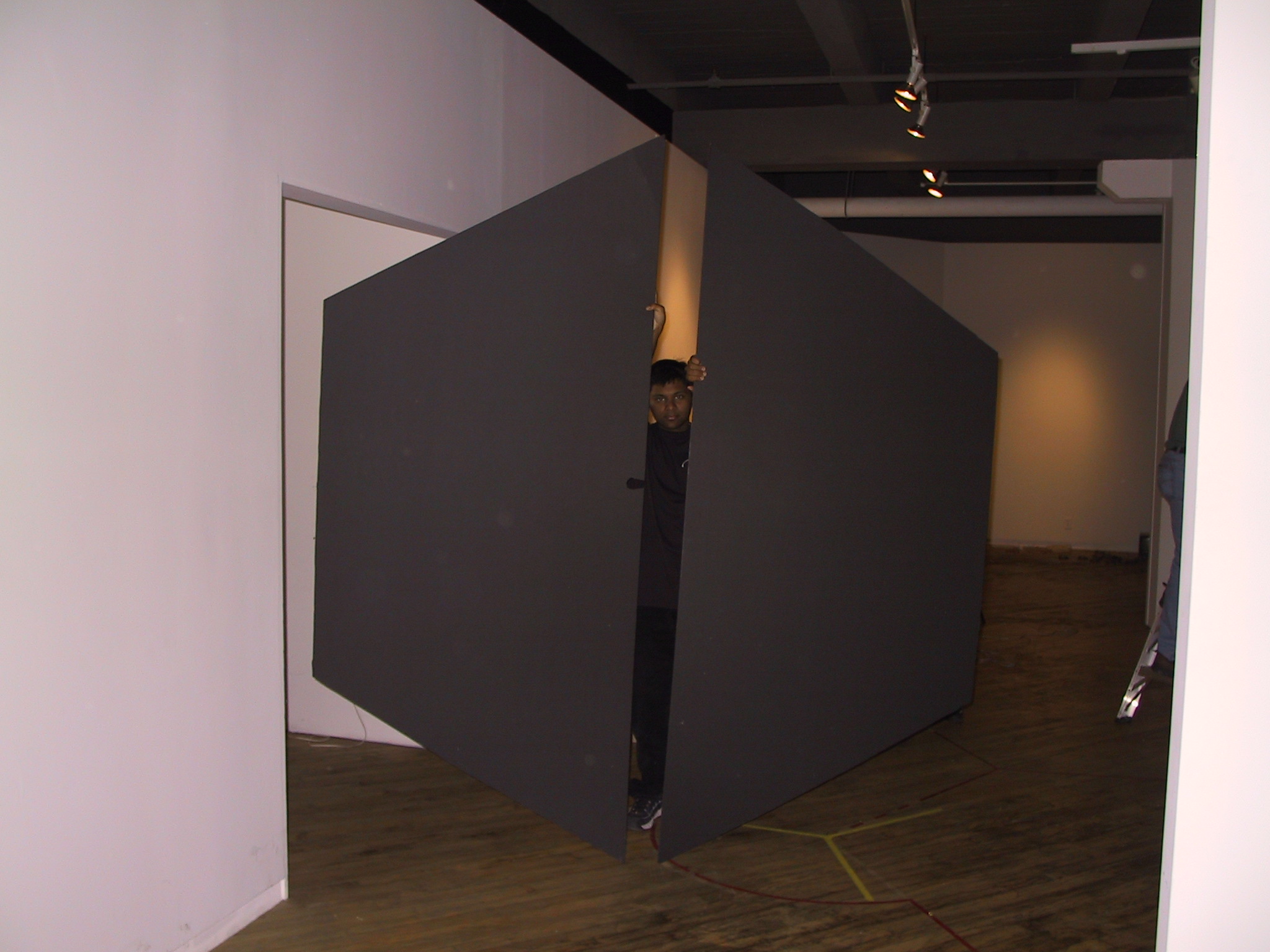

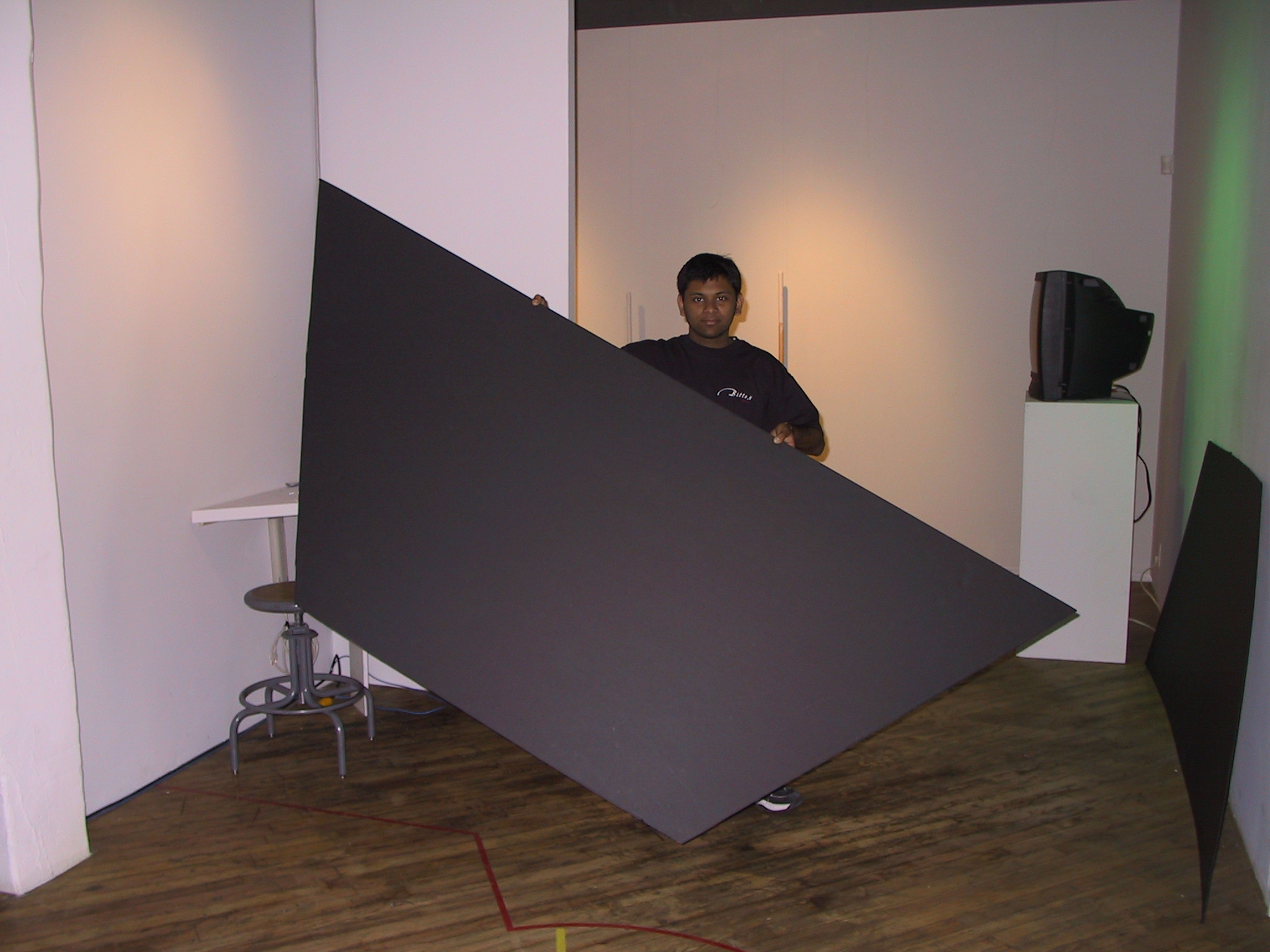

The hexagonal top piece is actually made in two parts, so that it is easier to lift it up to the top. One part fits over the men's side, and the other part fits over the women's side. Here is one of the two halves of the top cover:

Here is what the central triage/observation room looks like with the cover in place:

Next the showers are installed. Here, to the left of the triage/observation room, we see the men's showers:
Men's column shower to left of triage room.

After the showers are installed, six hexagonal rooms are to be built around the central triage/observation room, together with high security rotogate turnstiles similar to the turnstiles used in unguarded subway exits. The locations where the walls of these six hexagonal rooms are to be built are marked in red tape, and the positions where the turnstiles are to be installed are marked in yellow tape:
floor tape on hardwood floor to mark walls; shown here
          is also the marking for the turnstile at women's
          entrance to the decontamination facililty.
Here we see, for example, the entrance to women's undressing room showing, in yellow tape, where the rotors of a turnstile will go.

Separate entrances for men and women are to be provided. Three of the six rooms are for men, and the other three are for women.

A Bradley column shower is to be installed in each of the two shower rooms. A Bradley six station column shower donated by Bradley Corporation has already been installed in the men's washdown room:
Sensor operated column shower in which five of the six nozzles
          are visible.  Also visible are three of the six small round viewing
          windows, and some of the 12 laser diode body scanners,
          two being positined below each viewing window.

The knobs and soap dishes have been removed from the column shower, and the holes where these items once were have been replaced with a machine vision system comprised of 12 laser diode body scanners together with six round lexan viewing windows moulded into the inside of the column. There are two laser diode body scanners for each of the video sensors that are located at each of the six stations, for purposes of photometric stereo imaging of the bodies of the users of the column shower. A set of six video motion detectors with an Internet connected machine vision computer is to be placed inside each of the two column showers in the men's and women's washdown rooms. The system is sealed and completely watertight. Here is a closeup picture of the six round watertight viewports of the column shower currently in use in the men's washdown room:
Sensor operated column shower closeup showing detailed view of
          three of the six round
          smoked lexan viewing windows mounted into the column so that the
          machine vision system can observe users of the shower.
Three of the round smoked lexan viewing windows are visible here. Up to six men can use this shower at the same time, but only the number of stations actually being occupied will consume water. Moreover, water is only consumed when a user is present. Since there are no knobs or controls of any kind, there is no possibility for deliberately destructive acts such as might otherwise happen when users deliberately (or accidentally) leave the water running. Each of the six nozzles face one side of the hexagonal shaped room to maximize space usage and efficiency.

One of the six walls in each of the six rooms is made entirely of smoked lexan, so that triage personnel or decontamination officers in the central room can supervise the decontamination process, whereas the six or fewer men or women in each room cannot see the triage personnel or decontamination officers, because of the darkness of the lexan (transmissivity is approximately 10 percent, meaning that transmissivity squared is approximately 1 percent, as compared to roughly four percent reflectivity of the surface, such that any visual perception of triage personnel or decontamination officers will fall below a noise floor).

Typically, however, the triage personnel or decontamination officers operate the facility remotely by way of the six video cameras installed in the triage/observation room.

Remote control room

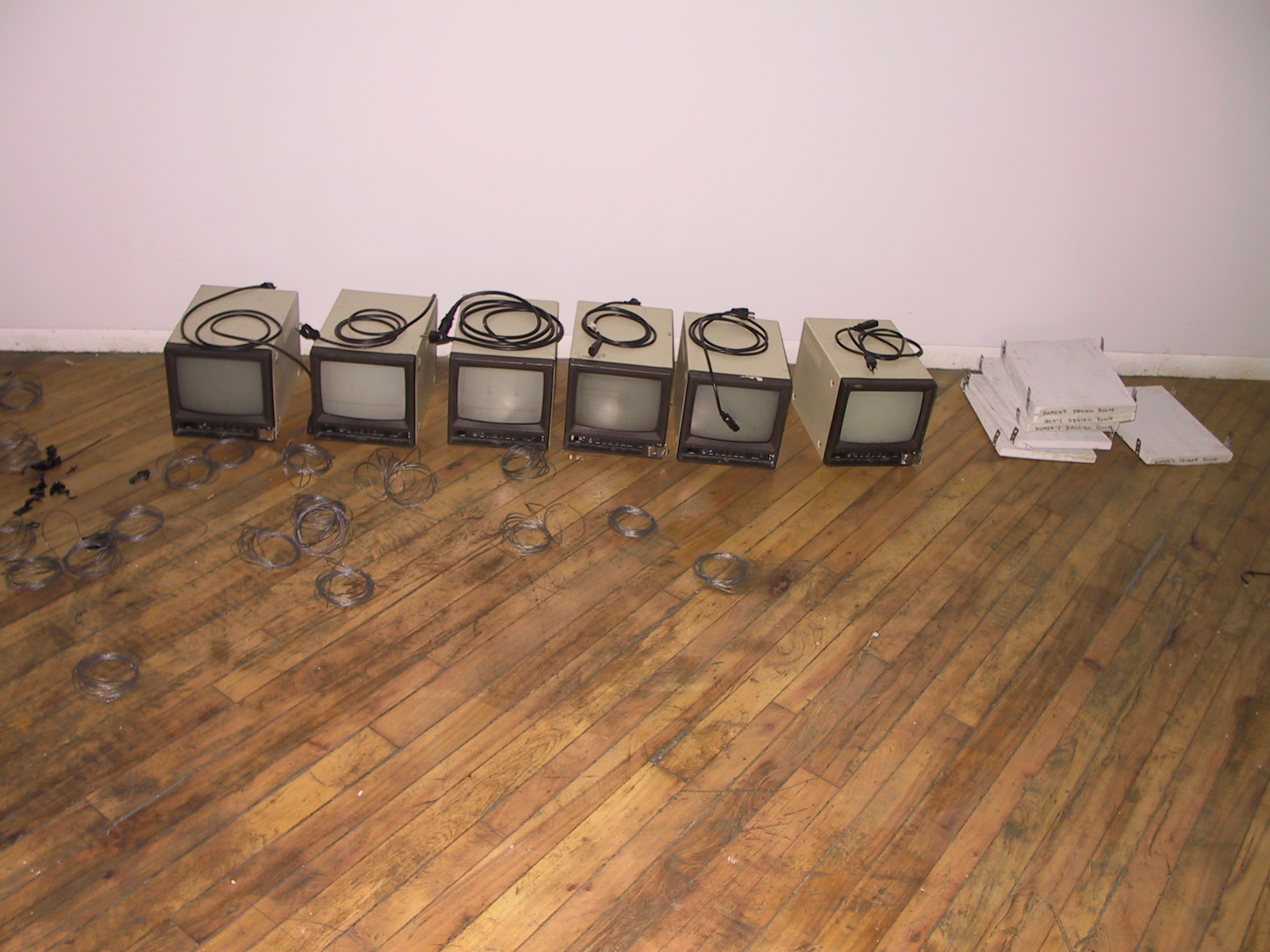

At another location, a control room capable of controlling a global network of decontamination facilities is built. Six video display devices are used, one to show the output from each of the six cameras in the triage/observation room that each face out into one of the decon rooms in the facility:

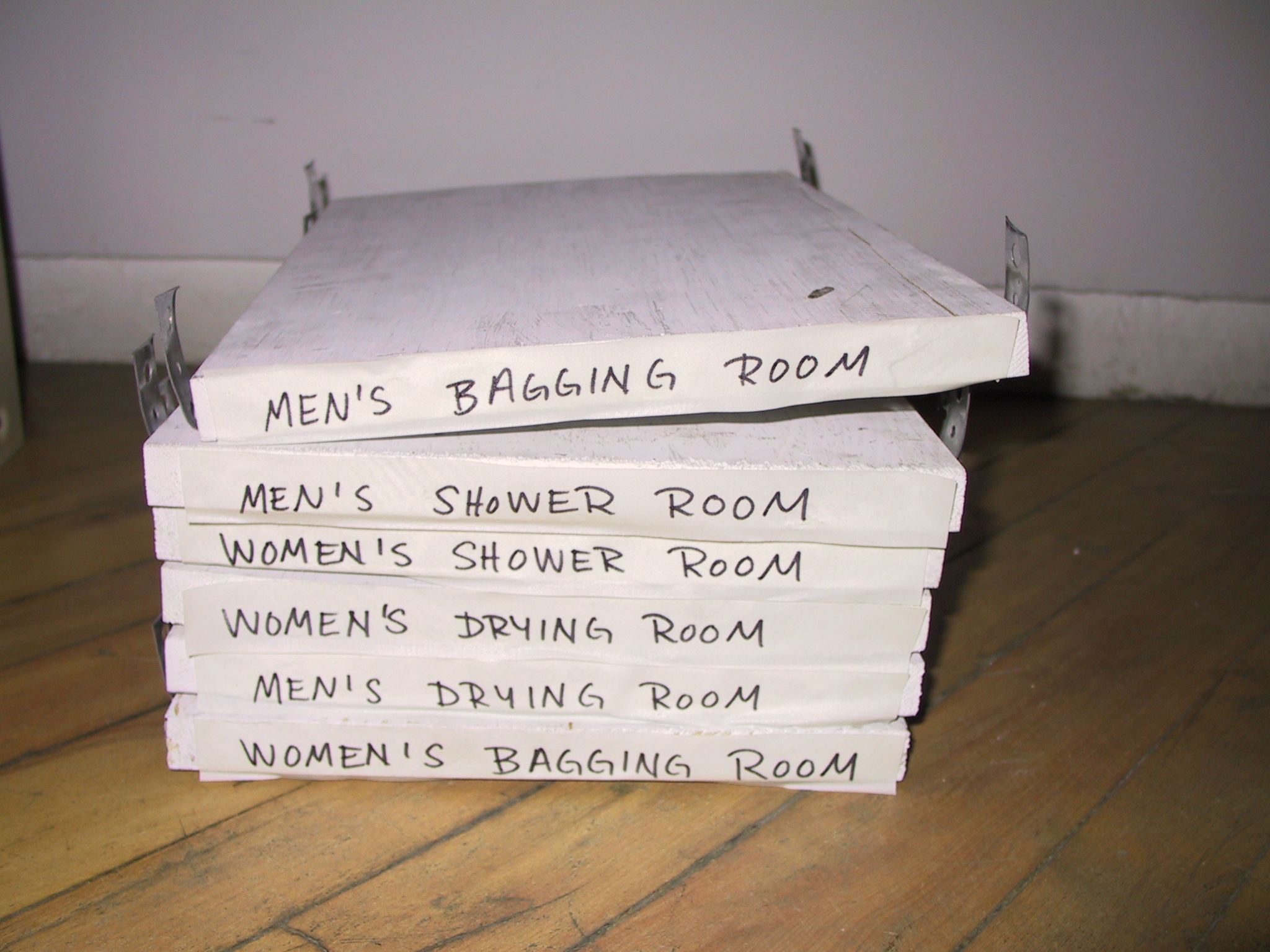

Each video display device sits on a shelf. Each shelf is fitted with a front surface upon which temporary labels can be affixed with writing from a marking pen to denote the video feed:

These six video display devices are arranged in a hexagonal formation at the remote location, as shown below:
Six television receivers hanging from the ceiling in a hexagonal
          arrangement, providing video output from cameras concealed behind
          the six walls of the triage/observation room.

The six television receivers are arranged in the same hexagonal formation as the central triage/observation room.

The four of the six screens that are visible here correspond to (from left to right) the:

Note also the hexagon made from red tape on the floor has the same physical dimensions as the triage/observation room. The display surface of each of the six television receivers is aligned with and centered along the middle of a corresponding side of the hexagon depicted on the floor in red tape, depicting where the control room is to be built.

Although the television displays shown here are of poor resolution:

(Here is the view from the men's decontamination/triage officer station, during a Decon Drill, held at the 80 Spadina Ave. facility, Thursday July 5th, 2001.)
The cameras are of very high quality and high resolution, so that remote triage personnel can clearly distinguish, for example, anthrax, from dust or other dirt. Archived images can also be used as evidence to prosecute those placing society at risk by failing to properly undergo decontamination. Recorded video may be used to prosecute those who refuse to undress, or refuse to cooperate with medical staff or decon officers.

Thus high resolution sensors are to be used throughout the facility to ensure satisfactory video quality:
Patients undressing and putting their clothing and personal
          belongings into bags in the men's stripdown and bagging room. Patients showering at a Bradley six station column shower
          in the men's washdown room. Patients lining up to receive their tyvek jumpsuits.

The above images illustrate the: (1) Strip; (2) Wash; and (3) Cover procedure.

These three steps were practiced in the 2001 July 5th decon drill:

Download a Decon Drill training video.

Why are we doing this? Here's some excerpts from various government and industry WWW sites.

See also, the final chapter in Cyborg: Digital Destiny and Human Possibility in the Age of the Wearable Computer
