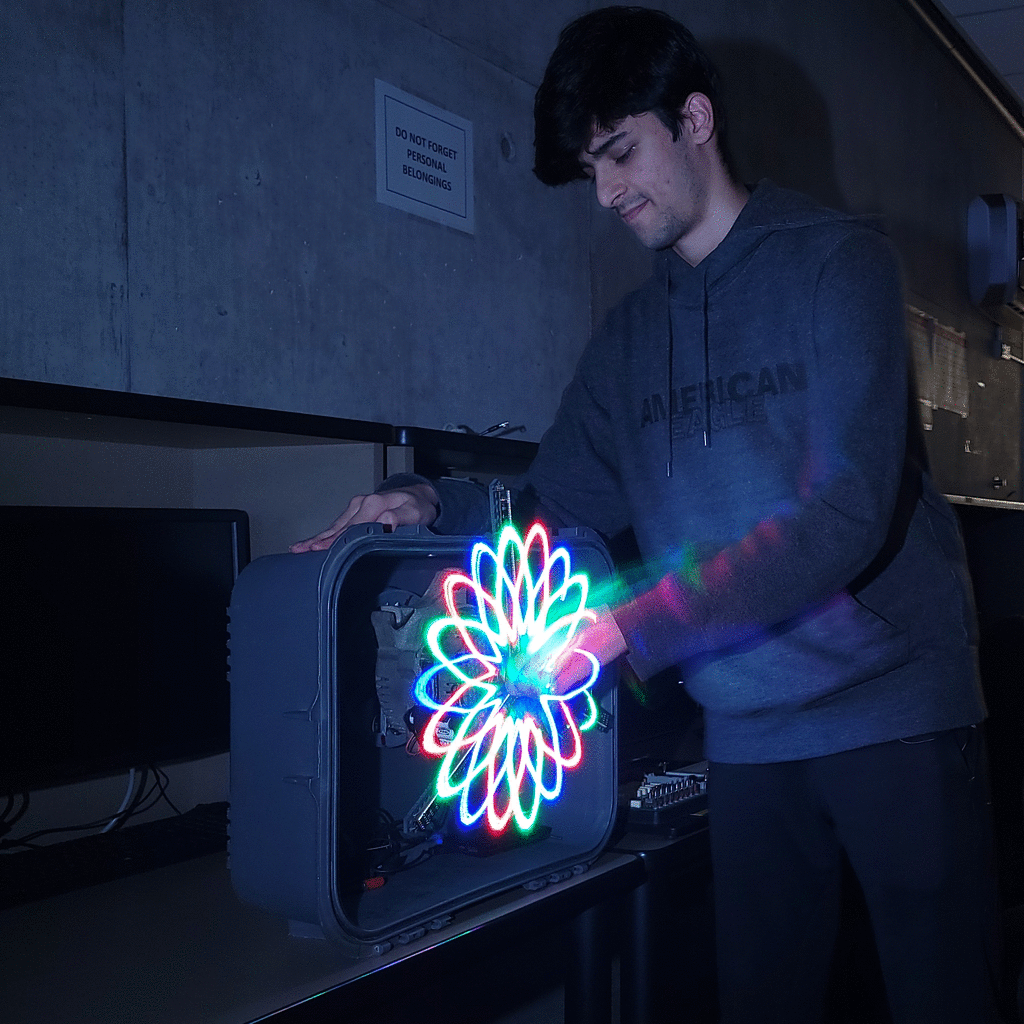

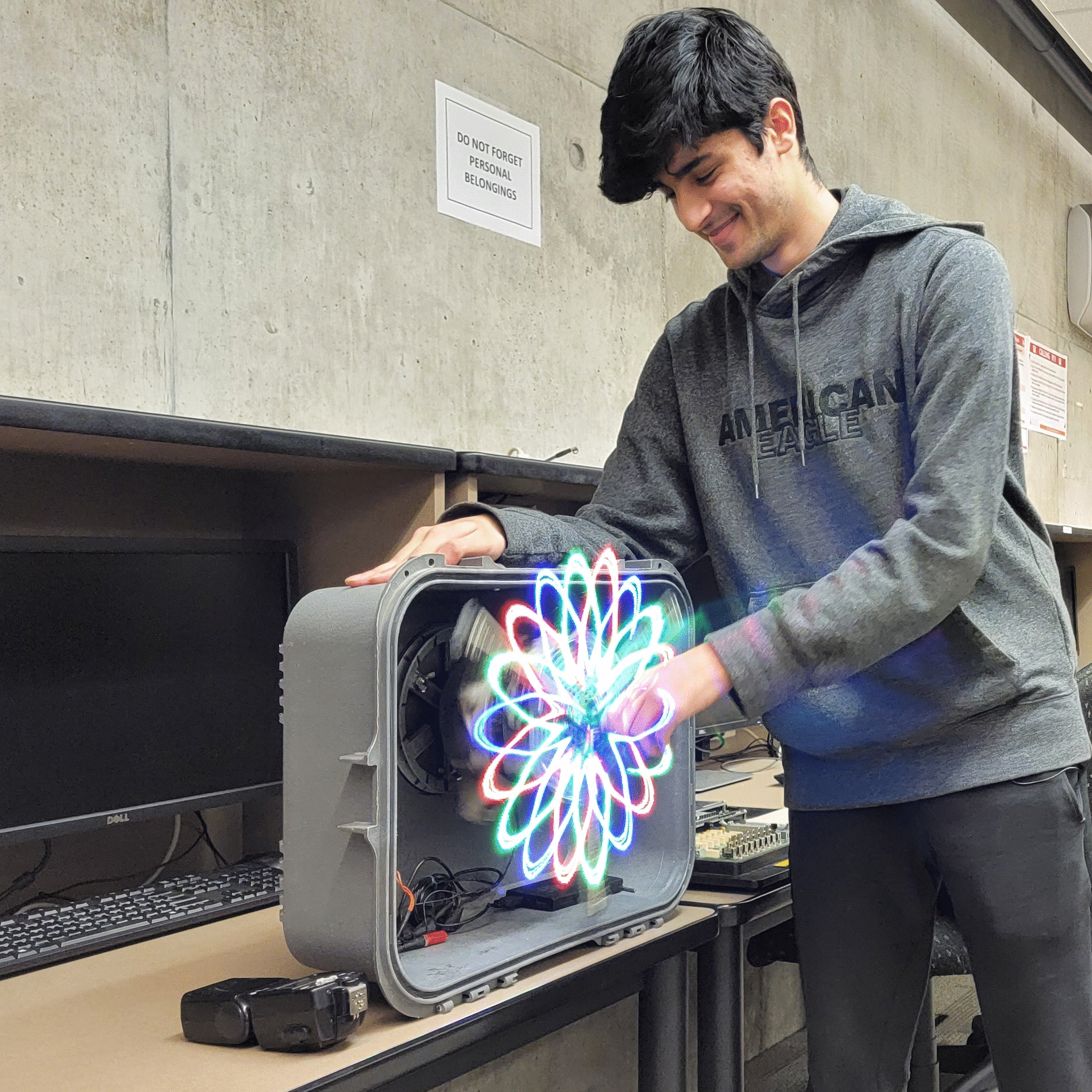

S.W.I.M. to see and photograph rotating magnetic field in motors

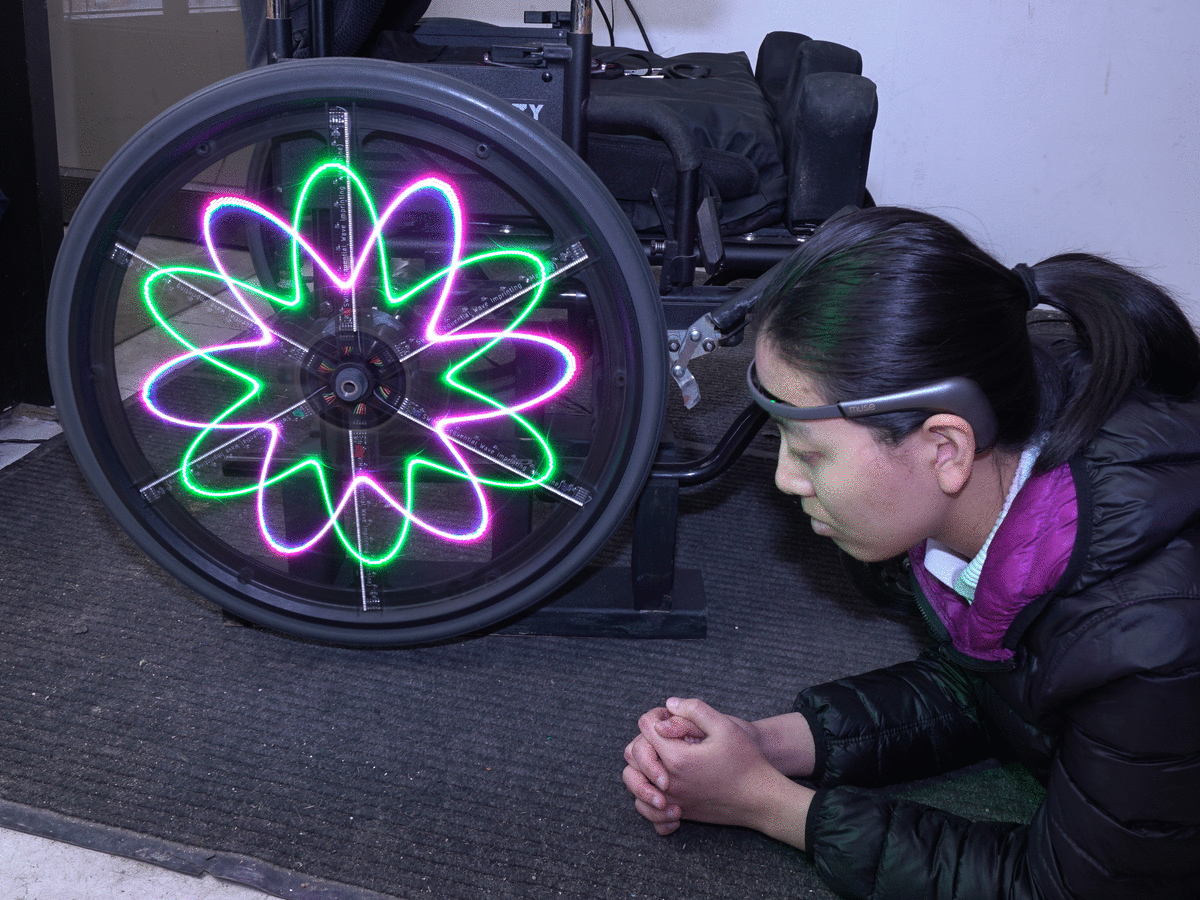

Muse mind-over-motor with brainwave-controlled wheelchair

Calibration:

Other motors:

See also MoTEAL and http://wearcam.org/swim/MoTEAL_DerekLam/.

Research papers on rotary SWIM:

• Moveillance: Visualizing Electric Machines, Steve Mann; Danson Evan Garcia; Phillip V. Do; Derek Lam; Pete Scourboutakos
• Understanding Electric Machines with S.W.I.M. (shows wiring diagram for 100 LED SWIM)



• EncephalogamesTM (Brain/Mind Games): Inclusive health and wellbeing for people of all abilities, Steve Mann, Diego Defaz, Tamer Abdulazim, Derek Lam, Mike Alford, Jeremy Stairs, Cayden Pierce, Christina Mann, IEEE GEM2019
• Electrical Engineering Design with the Subconscious Mind, Steve Mann; Phillip V. Do; Danson Evan Garcia; Jesse Hernandez; Humza Khokhar

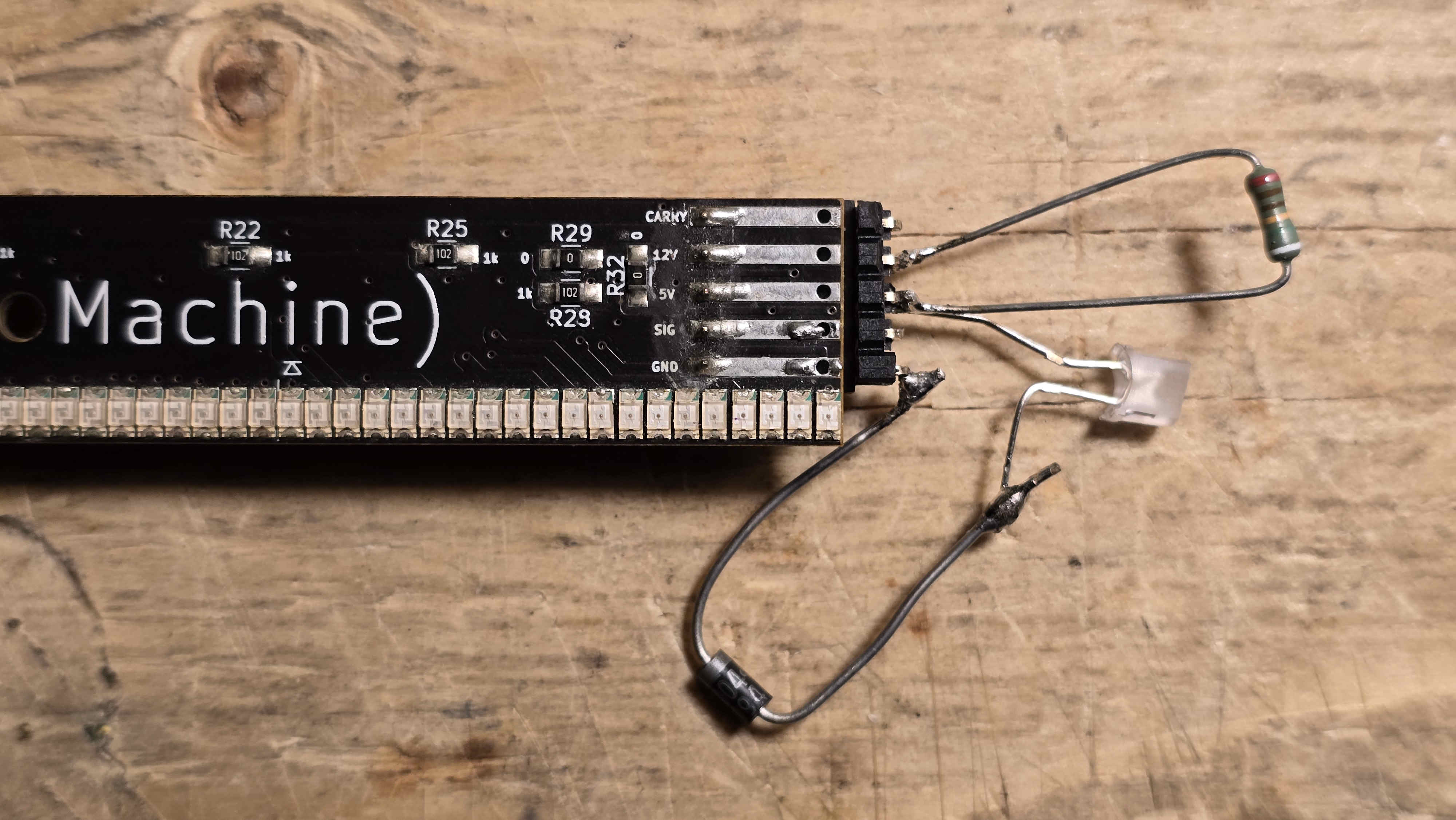

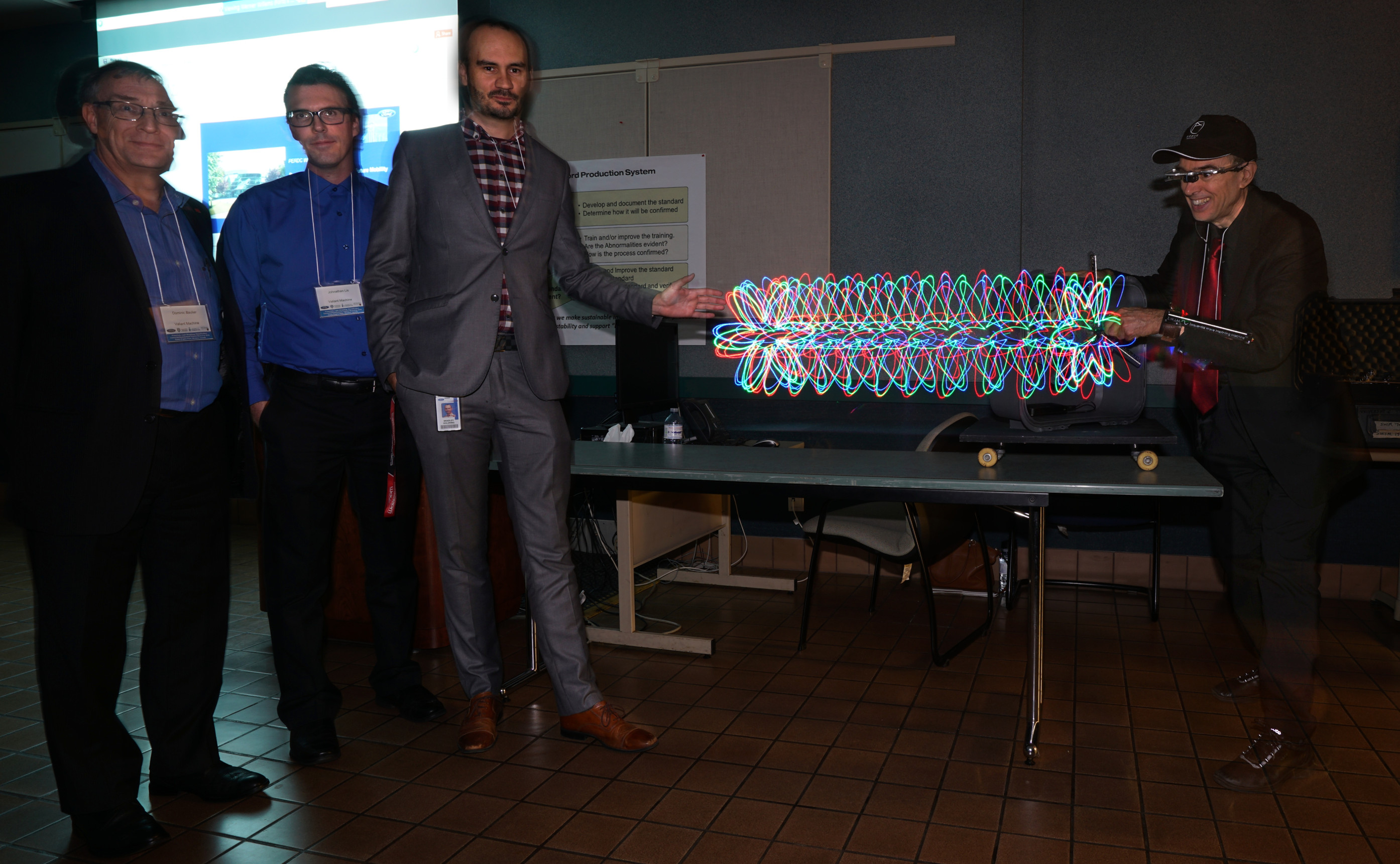

Linear SWIM for powertrenography:
Powertrain photography and visualization using SWIM... (submitted version directly compiled from Overleaf LaTeX)

See also, this "SWIMulator" (SWIM simulator): https://www.desmos.com/calculator/wfb5149tff

Simplified version, single phase, not animated: https://www.desmos.com/calculator/1ov41iay7t
